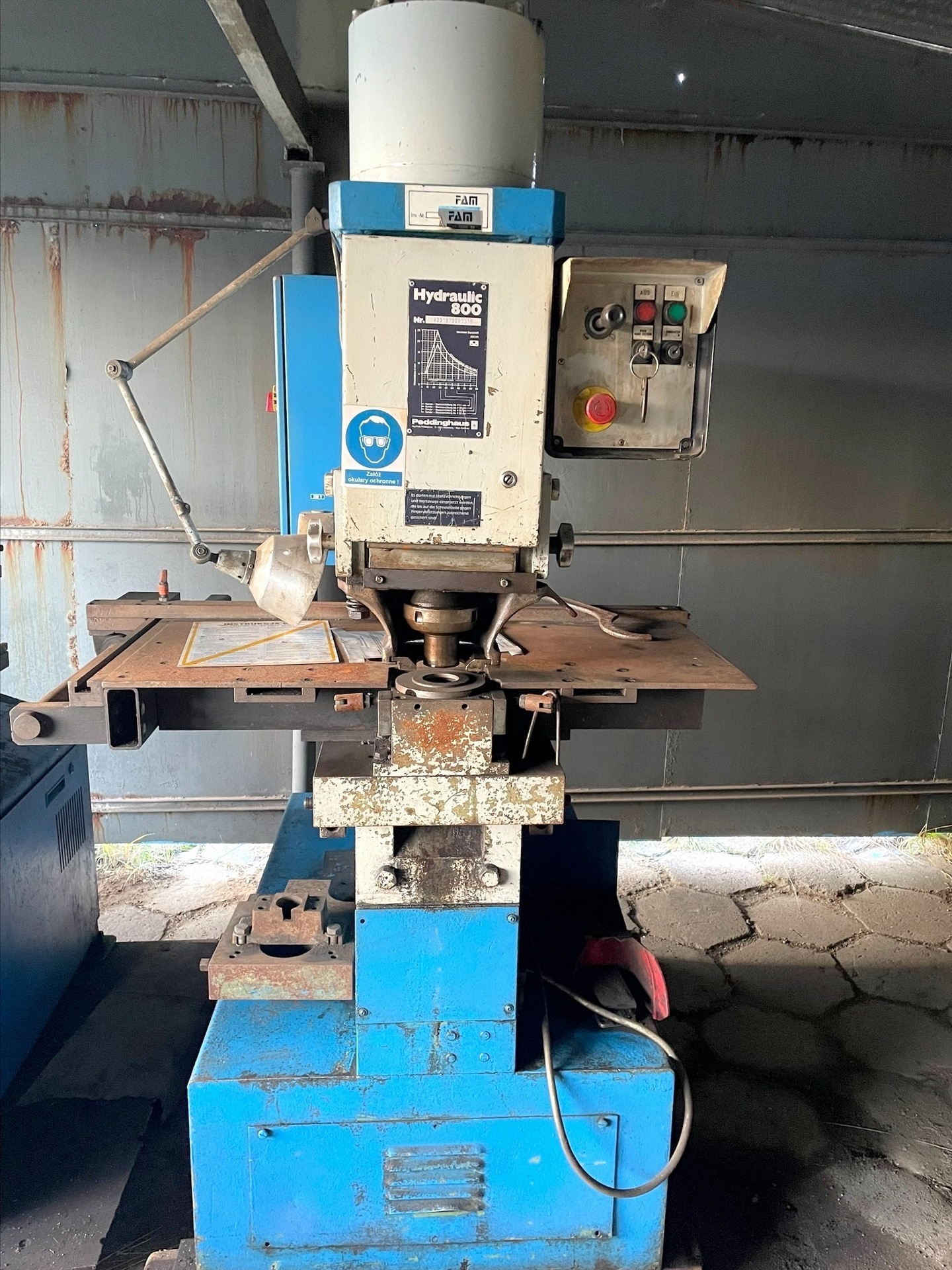

PEDDINGHAUS Hydraulic 800 hydraulic punching machine

PEDDINGHAUS Hydraulic 800 hydraulic punching machine was manufactured in Germany by Paul Ferdinand Peddinghaus GmbH. This highly reliable machine is used for the precision machining of angle bars and flat bars. It enables the punching of square and round holes in structural steel workpieces with a maximum thickness of 25 mm. The machining process is performed with a high press force of up to 80 tonnes by means of punches. The perfectly balanced design of the machine maintains excellent stability even during the most intensive challenges. All of this makes the PEDDINGHAUS Hydraulic 800 an excellent addition to industrial facilities and locksmith workshops. The total weight of the machine is approximately 1500 kg. Technical specifications of the PEDDINGHAUS Hydraulic 800 punching machine General data maximum press force: 80 t (800 kN) throat depth: approx. 200 mm working height: approx. 1107 mm total power consumption: approx. 4 kW working current: 17/11 A power supply: 220/380 V; 50 Hz dimensions (L x W x H): 1200 x 700 x 1850 mm weight of the PEDDINGHAUS Peddiworker 800 machine: approx. 1500 kg Machining capability (steel Rm <450 N/mm2) maximum hole diameter (workpiece thickness 9 mm): 10 mm maximum hole diameter (workpiece thickness 14 mm): 15 mm maximum hole diameter (workpiece thickness 19 mm): 20 mm maximum hole diameter (workpiece thickness 25 mm): 25 mm maximum hole diameter (workpiece thickness 20.5 mm): 30 mm maximum hole diameter (workpiece thickness 17.5 mm): 35 mm maximum hole diameter (workpiece thickness 16 mm): 40 mm maximum hole diameter (workpiece thickness 14 mm): 45 mm maximum hole diameter (workpiece thickness 12.5 mm): 50 mm maximum hole diameter (workpiece thickness 11 mm): 55 mm maximum hole diameter (workpiece thickness 10.5 mm): 60 mm maximum hole diameter (workpiece thickness 9.5 mm): 65 mm maximum hole diameter (workpiece thickness 9 mm): 70 mm maximum hole diameter (workpiece thickness 8.5 mm): 75 mm maximum hole diameter (workpiece thickness 8 mm): 80 mm maximum hole diameter (workpiece thickness 7.5 mm): 85 mm maximum hole diameter (workpiece thickness 7 mm): 90 mm Machining capability (steel Rm <600 N/mm2) maximum hole diameter (workpiece thickness 7 mm): 10 mm maximum hole diameter (workpiece thickness 11 mm): 15 mm maximum hole diameter (workpiece thickness 14 mm): 20 mm maximum hole diameter (workpiece thickness 19 mm): 25 mm maximum hole diameter (workpiece thickness 15.5 mm): 30 mm maximum hole diameter (workpiece thickness 13 mm): 35 mm maximum hole diameter (workpiece thickness 12.5 mm): 40 mm maximum hole diameter (workpiece thickness 10.5 mm): 45 mm maximum hole diameter (workpiece thickness 9.5 mm): 50 mm maximum hole diameter (workpiece thickness 8.5 mm): 55 mm maximum hole diameter (workpiece thickness 7.5 mm): 60 mm maximum hole diameter (workpiece thickness 7 mm): 65 mm maximum hole diameter (workpiece thickness 6.5 mm): 70 mm maximum hole diameter (workpiece thickness 6 mm): 75 mm maximum hole diameter (workpiece thickness 5.5 mm): 80 mm maximum hole diameter (workpiece thickness 5.25 mm): 85 mm maximum hole diameter (workpiece thickness 5 mm): 90 mm
