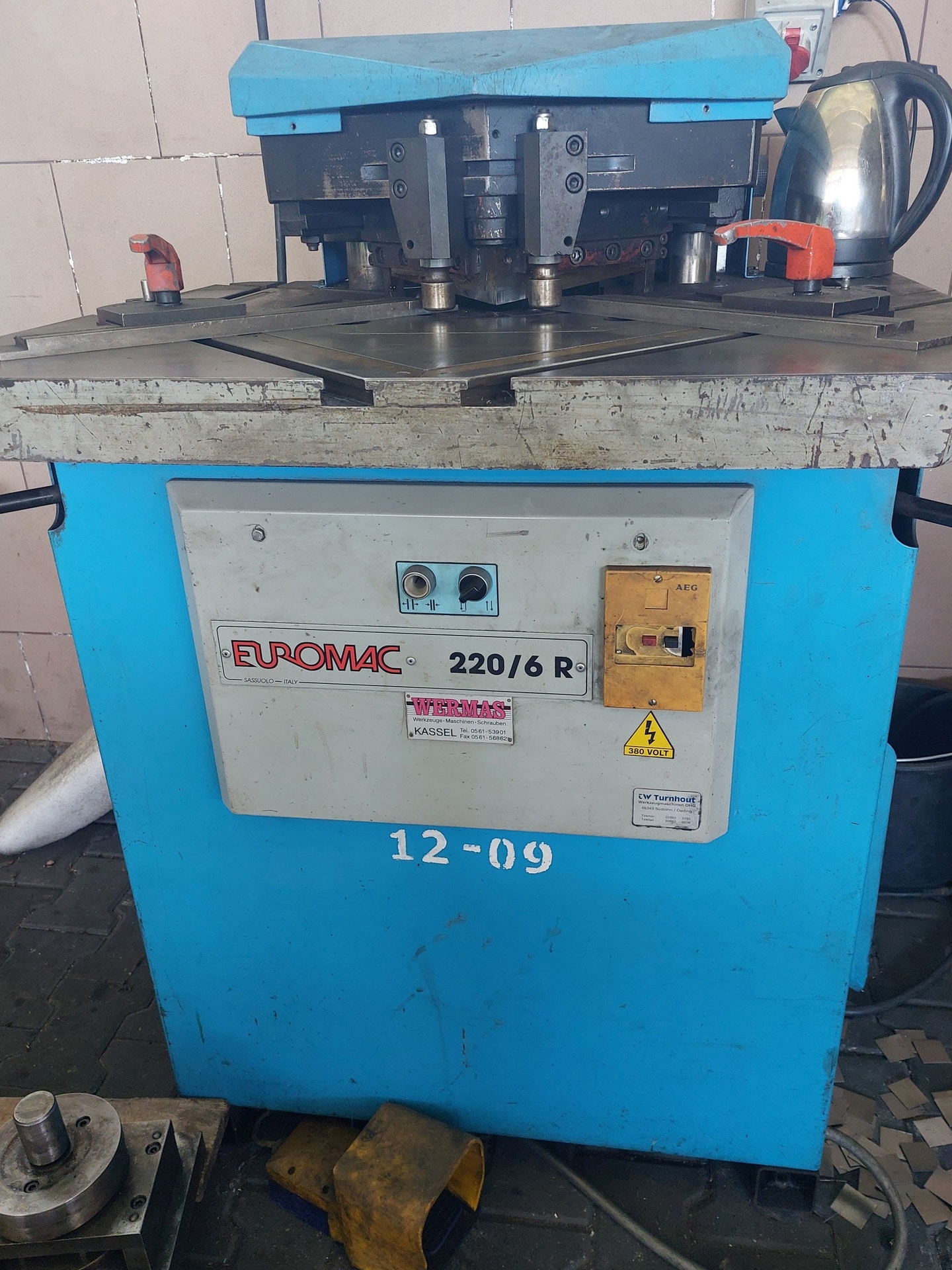

EUROMAC 220/6R corner notching machine

EUROMAC 220/6R corner notching machine was built in 1998 in Italy by Euromac S.p.A. The machine is designed for the precise notching of corners in sheet metal with a maximum thickness of 6 mm, ensuring high accuracy and repeatability of the machining. The machining is performed by means of high-quality blades made of high-speed steel (HSS). The automatic blade gap adjustment system enables the working parameters to be adapted to the type and thickness of the workpiece. A constant cutting angle is maintained thanks to a hydraulic blade locking system with 5 cylinders. This solution allows the selected cutting angle to be maintained throughout the entire working cycle and ensures the repeatability of the performed operations. The work table, in turn, features engraved millimetre graduations, which facilitate precise positioning of the material. The EUROMAC 220 6R corner notching machine weighs approximately 870 kg. Technical specifications of the EUROMAC 220/6R corner notching machine maximum sheet metal thickness (steel Rm=60 kg/mm2, 30°): 6 mm maximum sheet metal thickness (steel Rm=42 kg/mm2, 30°): 4 mm number of strokes: 70–130/min blade length: 220 mm work table surface (L x W): 950 x 800 mm distance from the floor to the work table: 930 mm oil tank capacity: 60 l motor power: 4 kW dimensions (L x W x H): 1000 x 900 x 1200 mm weight of the EUROMAC 220/6R machine: approx. 870 kg (The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
