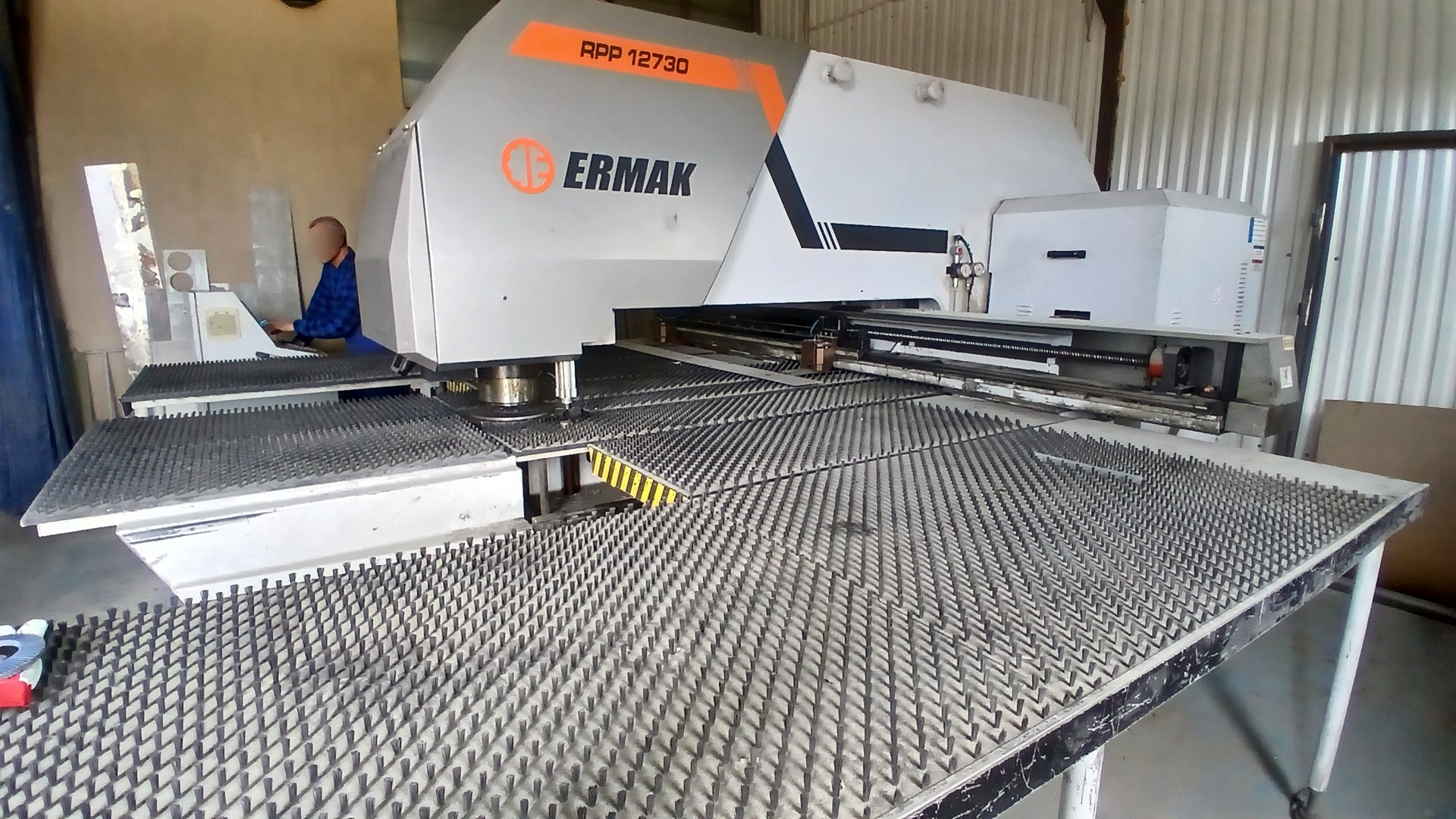

ERMAK RPP 1270X30 punching machine

ERMAK RPP 1270X30 punching machine was built in 2013 in Turkey by ERMAKSAN MAKINA SANAYI VE TIC. AŞ. The machine, which is distinguished by its high productivity and precision, is used in the machining of thin sheet metal with a maximum thickness of 6.35 mm. All machining processes are performed on a large brush table by a reliable working head, which operates with a maximum force of 30 tonnes. The brush table prevents scratches and nicks on the sheet metal surface during material feed, and also significantly reduces noise level. All this is complemented by a FANUC CNC control with an intuitive interface that allows advanced machining programmes to be created in just a few steps. The ERMAK RPP 12730 CNC punching machine weighs 11000 kg. It is also possible to purchase Metalix CAD/CAM software at an additional cost of 10500 EUR net. Technical specifications of the ERMAK RPP 1270X30 punching machine CNC controller: FANUC Series 31i-P MODEL B maximum press force: 30 t maximum workpiece thickness: 6.35 mm maximum workpiece dimensions (L x W): 2000 x 1270 mm stroke length: 40 mm number of strokes: 300/min machine switch-on time: 6278 h oil tank capacity: 300 l motor power: 18.5 kW dimensions (L x W x H): 4250 x 4000 x 2220 mm weight of the ERMAK RPP 1270X30 machine: 11000 kg
