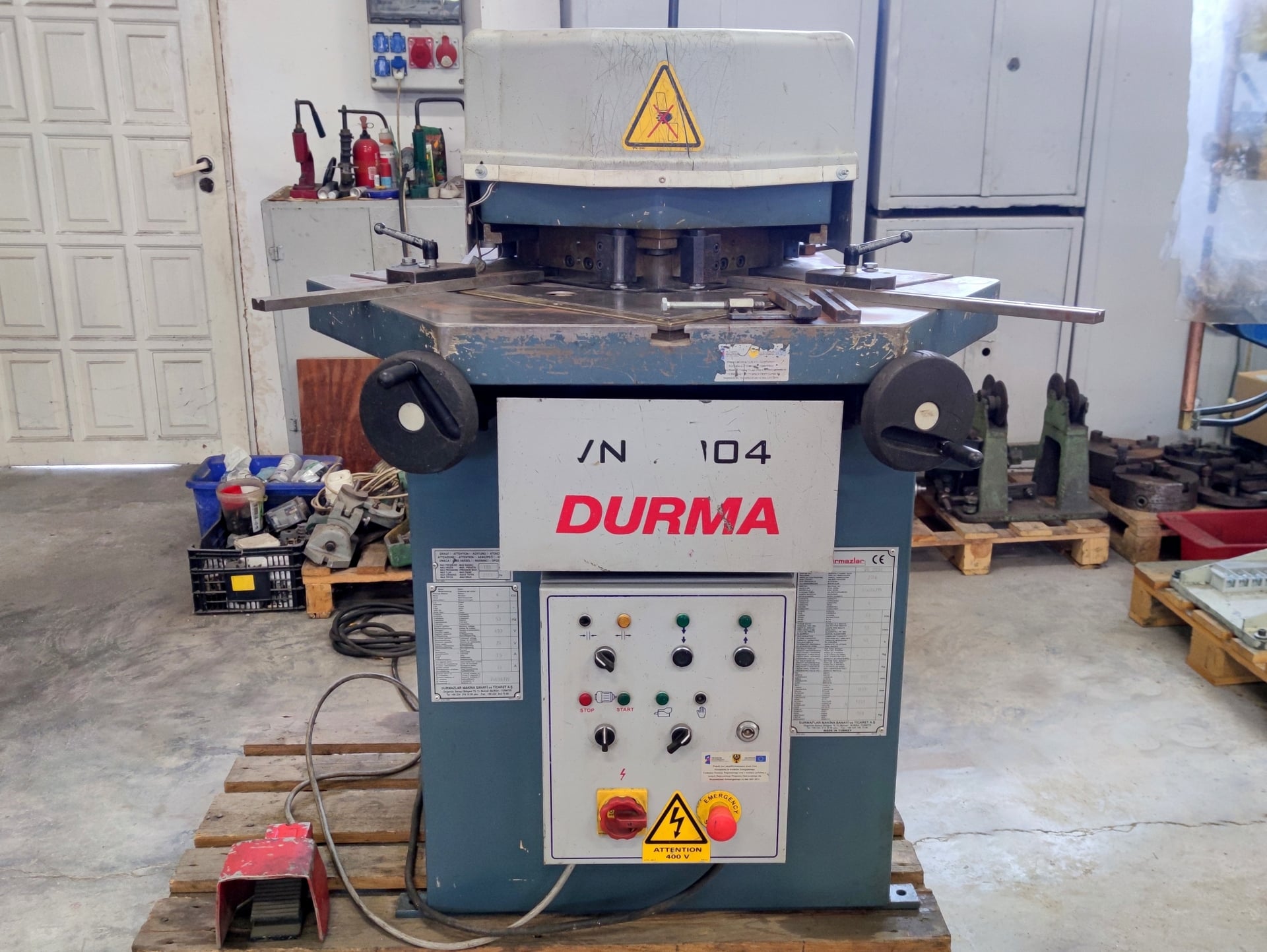

DURMA VN 2004 corner notching machine

DURMA VN 2004 corner notching machine was built in 2014. The machine, distinguished by its small size and highly rigid design, is used in the process of precision punching of plain steel and alloy steel. Workpieces with a maximum thickness of 4 mm are machined by high-quality blades with easy clearance adjustment, guaranteeing the correct hail and straightness of the cutting edge. The cutting angle is adjustable from 30° to 140°. The DURMA hydraulic notching machine machine weighs 860 kg. Technical specifications of the DURMA VN 2004 notching machine maximum workpiece thickness (60°): 4 mm maximum workpiece thickness (30°): 3 mm cutting length: 200 x 200 mm cutting angle: adjustable from 30° to 140° blade length: 200 mm number of strokes: 30/min stroke: 40 mm main motor power: 4 kW oil tank capacity: 50 l working pressure: 180 bar maximum noise level: 114 db(A) dimensions (L x W x H): 1100 x 950 x 1350 mm weight of machine: 860 kg
