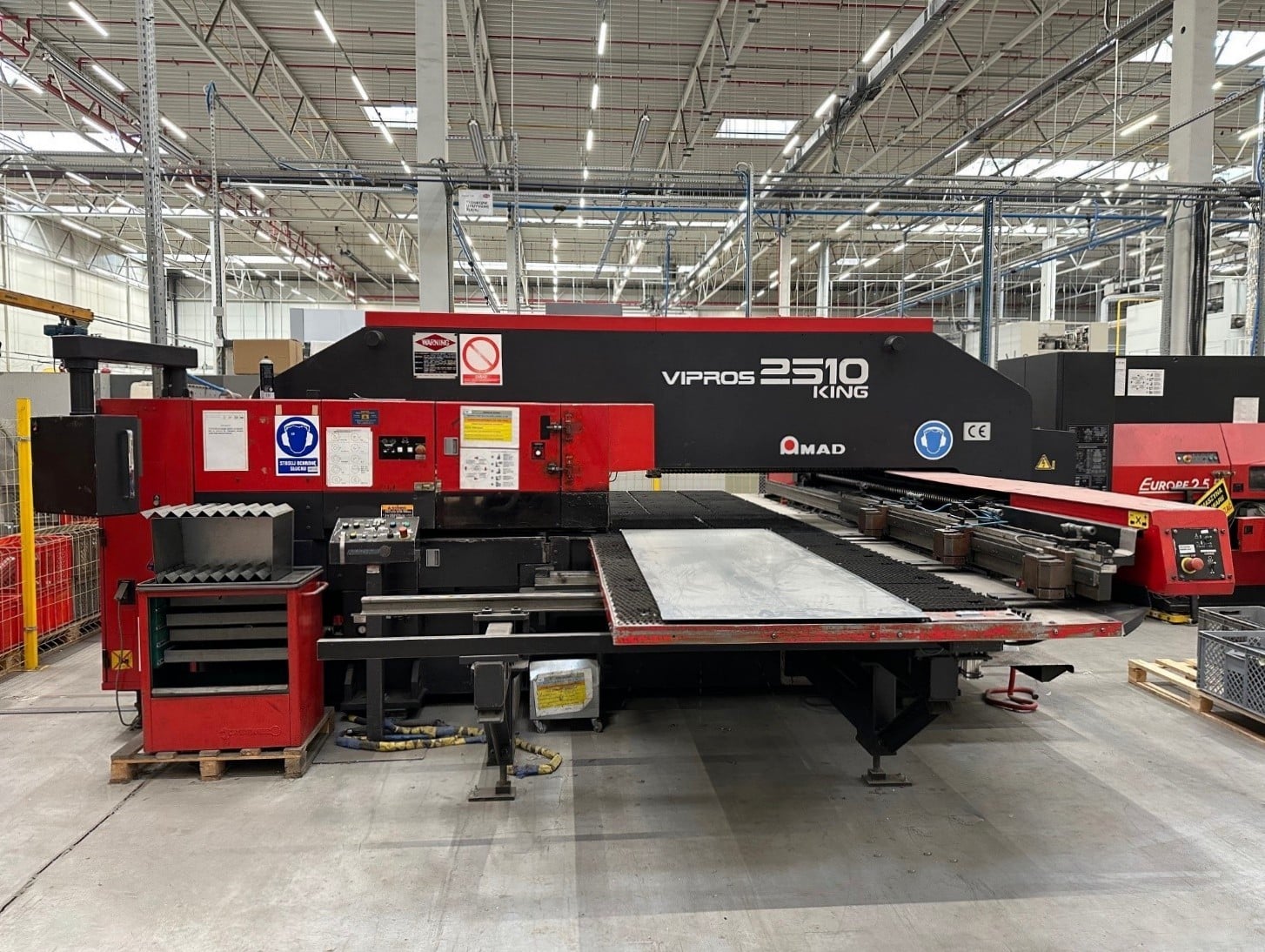

AMADA VIPROS 2510 KING CNC punching machine

AMADA VIPROS 2510 KING CNC punching machine was built in 1998 in Japan by AMADA CO., LTD. The machine, distinguished by its extensive machining capabilities, is an excellent choice for the production of precise parts with the highest quality. It is capable of punching holes in sheet metal made of, among others stainless steel and aluminium, with a maximum thickness of 6.4 mm. The machining process is performed on a large brush table, which prevents scratches and scrapes on the sheet surface, and also significantly reduces noise level. All this is completed by an intelligent FANUC CNC control in which the most advanced machining programmes are created in just a few steps. The AMADA VIPROS 2510K punching machine weighs 11000 kg. Technical specifications of the AMADA VIPROS 2510 KING punching machine CNC control: FANUC Series 18-P maximum press force: 20 t (196 kN) feed in the X/Y axis: 2500/1270 mm feed rate in the X/Y axis: 100/80 m/min maximum sheet metal thickness: 6.4 mm maximum sheet metal dimensions (L x W): 5000 x 1270 mm maximum sheet metal weight: 150 kg maximum stroke length: 40 mm number of strokes in the X axis (8 mm stroke): 410/min number of strokes in the X axis (25.4 mm stroke): 350/min number of strokes in the Y axis (8 mm stroke): 360/min number of strokes in the Y axis (25.4 mm stroke): 280/min 31-station turret head turret rotation speed: 35 rpm brush table punching accuracy: ± 0.1 mm punching accuracy in high accuracy mode: ± 0.07 mm response time: 520 ms stopping time: 500 ms stopping distance: 670 mm working air pressure: 0.49 MPa air flow: 250 l/min power requirement: 24 kVA dimensions (L x W x H): 5290 x 5120 x 2160 mm weight of the AMADA VIPROS 2510 KING machine: 11000 kg
