AMADA EUROPE 258 punching machine

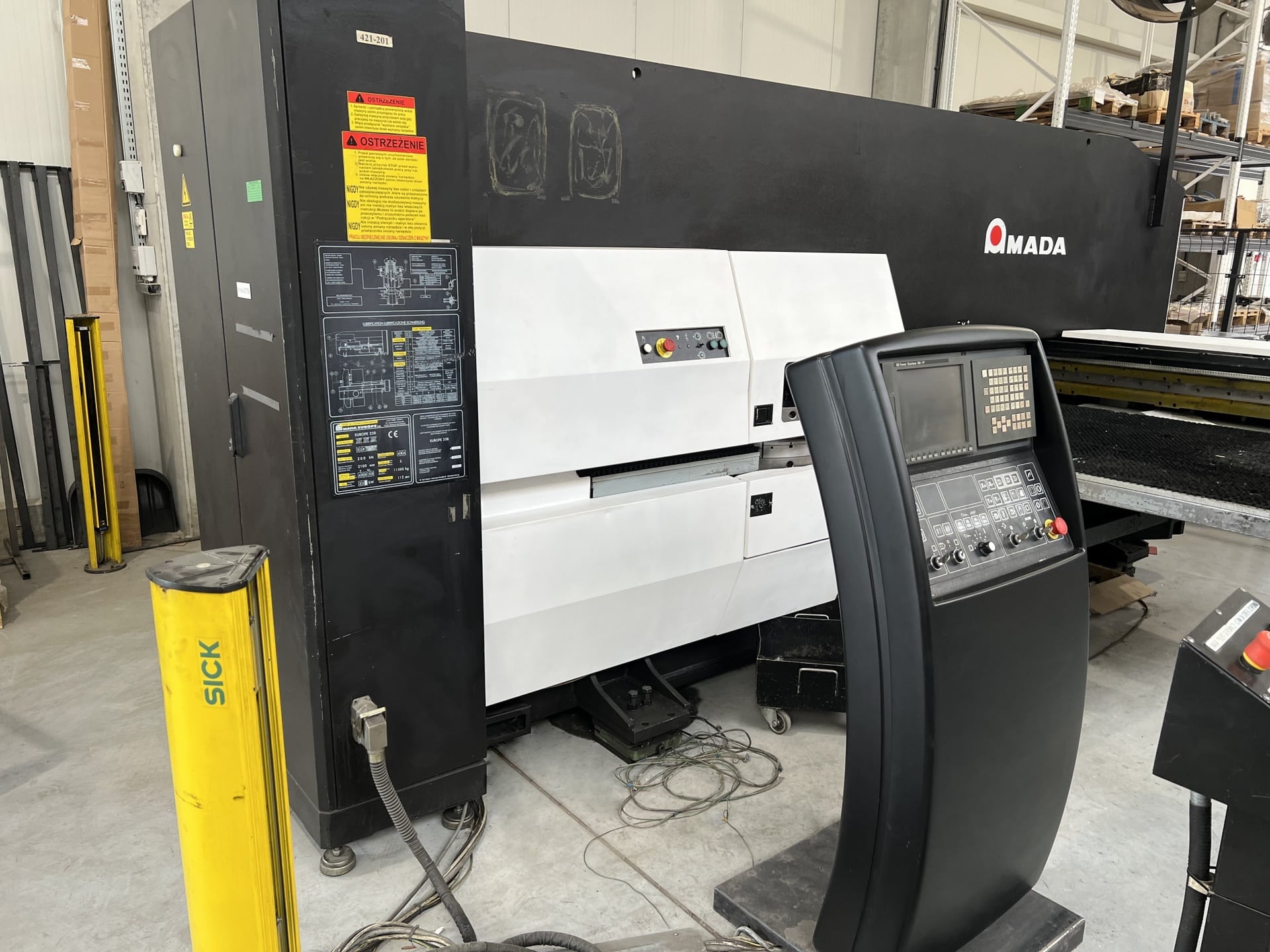

AMADA EUROPE 258 punching machine was manufactured in 2000 in Japan. The machine designed for processing sheet metals with a maximum thickness of 6 mm guarantees the highest accuracy and quality of punching, thanks to the use of a precise slider with a hydraulic stroke. This solution, combined with its high reliability and high pressing force, makes the EUROPE 258 punching machine stand out significantly from other machines of its type. In order to allow the user to perform a wide range of machining operations, the machine has been equipped with a capacious turret magazine with 27 workstations (including 3 auto-index stations) with space for tools for many different tasks. In addition, the entire workspace has been protected by SICK safety curtains to ensure the highest level of operational safety. The AMADA hydraulic punching machine weighs 10500 kg. Technical data of AMADA EUROPE 258 punching machine maximum sheet thickness: 6 mm press force: 20 t (200 kN) maximum workpiece dimensions with interceptor (L x W): 4000 x 1250 mm maximum workpiece dimensions without interceptor (L x W): 2000 x 1250 mm sheet metal maximum weight: 100 kg working speed in the X,Y axis: 82 m/min number of strokes (stroke 1 mm): 1000/min number of strokes (stroke 25 mm): 400/min number of tool stations: 27 – including: – station A: 15 (maximum diameter: 12,7 mm) – station B: 6 (maximum diameter: 31,7 mm) – station C: 1 (maximum diameter: 50,8 mm) – station D: 2 (maximum diameter: 88,9 mm) – auto-index station B: 2 (maximum diameter: 31,7 mm) – auto-index station C: 1 (maximum diameter: 50,8 mm) maximum tool diameter: 88.9 mm punching accuracy: ± 0.1 mm turret rotational speed: 25 rpm stop time: 270 ms power: 33 kW noise level: 112 dB(A) power supply: 3x 400 V; 50 Hz weight of machine: 11500 kg Equipment of the AMADA punching machine CNC control: FANUC light curtains: SICK control panel pneumatic clamps (2 pcs)
