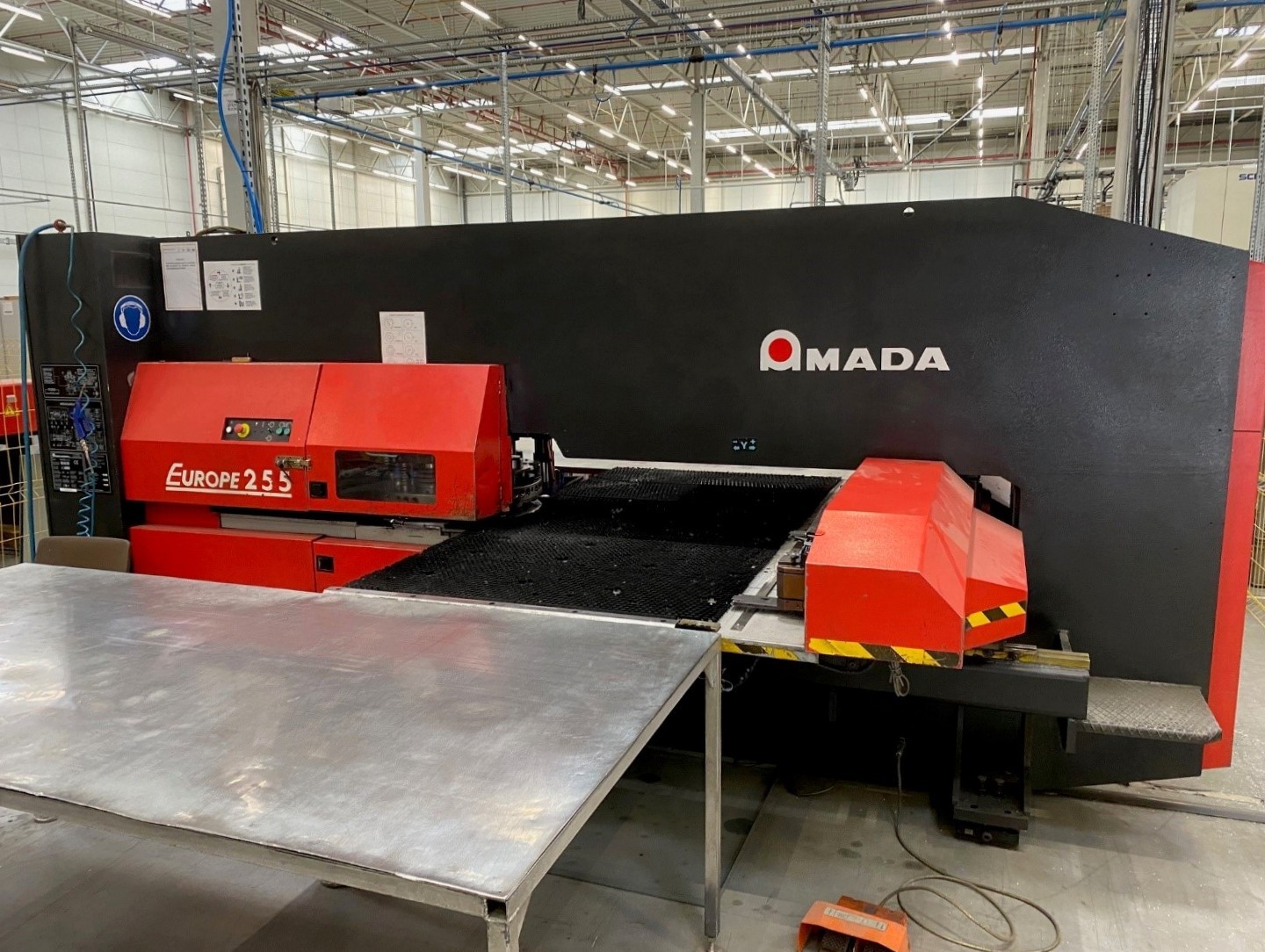

AMADA EUROPE 255 CNC punching machine

AMADA EUROPE 255 CNC punching machine was built in 2004 in France by AMADA EUROPE S.A.. The machine, designed for machining thin sheet metal of a maximum thickness of 3 mm, is distinguished by its high efficiency and reliability. In order to obtain the highest precision of the produced parts, all the machining processes are performed on a large brush table. This table, thanks to its design, prevents scratches and nicks on the sheet metal during the material feed, and also significantly reduces the noise level. The EUROPE 255 punching machine is also offered with extensive equipment, including e.g. a cooling unit, light curtains and an advanced GE FANUC CNC control. The total weight of the machine is 11000 kg. Technical specifications of the AMADA EUROPE 255 punching machine maximum press force: 20 t (200 kN) feed in the X/Y axis: 1280/1320 mm feed rate in the X,Y axis: 82 m/min maximum sheet metal thickness: 3 mm maximum sheet metal dimensions with repositioning (L x W): 2540 x 1250 mm maximum sheet metal weight: 105 kg maximum stroke length: 1350 mm number of strokes in the X axis (marking, hole spacing 0.1 mm, stroke 3 mm): 700/min number of strokes in the Y axis (marking, hole spacing 0.1 mm, stroke 3 mm): 620/min number of strokes in the X axis (punching, hole spacing 1 mm, stroke 3 mm): 750/min number of strokes in the Y axis (punching, hole spacing 1 mm, stroke 3 mm): 620/min number of strokes in the X axis (punching, hole spacing 25.4 mm, stroke 3 mm): 380/min number of strokes in the Y axis (punching, hole spacing 25.4 mm, stroke 3 mm): 250/min maximum tool diameter: 88.9 mm turret rotational speed: 25 rpm punching accuracy: ± 0.1 mm positioning repeatability: ± 0.07 mm stopping time: 270 ms oil tank capacity: 160 l air pressure: 5 bar air flow: 250 l/min noise level: 112 dB(A) installed power: 29 kW power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 4900 x 2900 x 2150 mm weight of the AMADA EUROPE 255 machine: 11000 kg Equipment of the AMADA punching machine CNC controller: GE FANUC Series 18i-PB 27-station turret head light curtains: SICK cooling unit (chiller) brush table pneumatic material clamps (2 pcs.) levelling pads with silencer (4 pcs.) hydraulic flail workpiece reception chute RS 232C interface CE and EMR (EMC) certification
