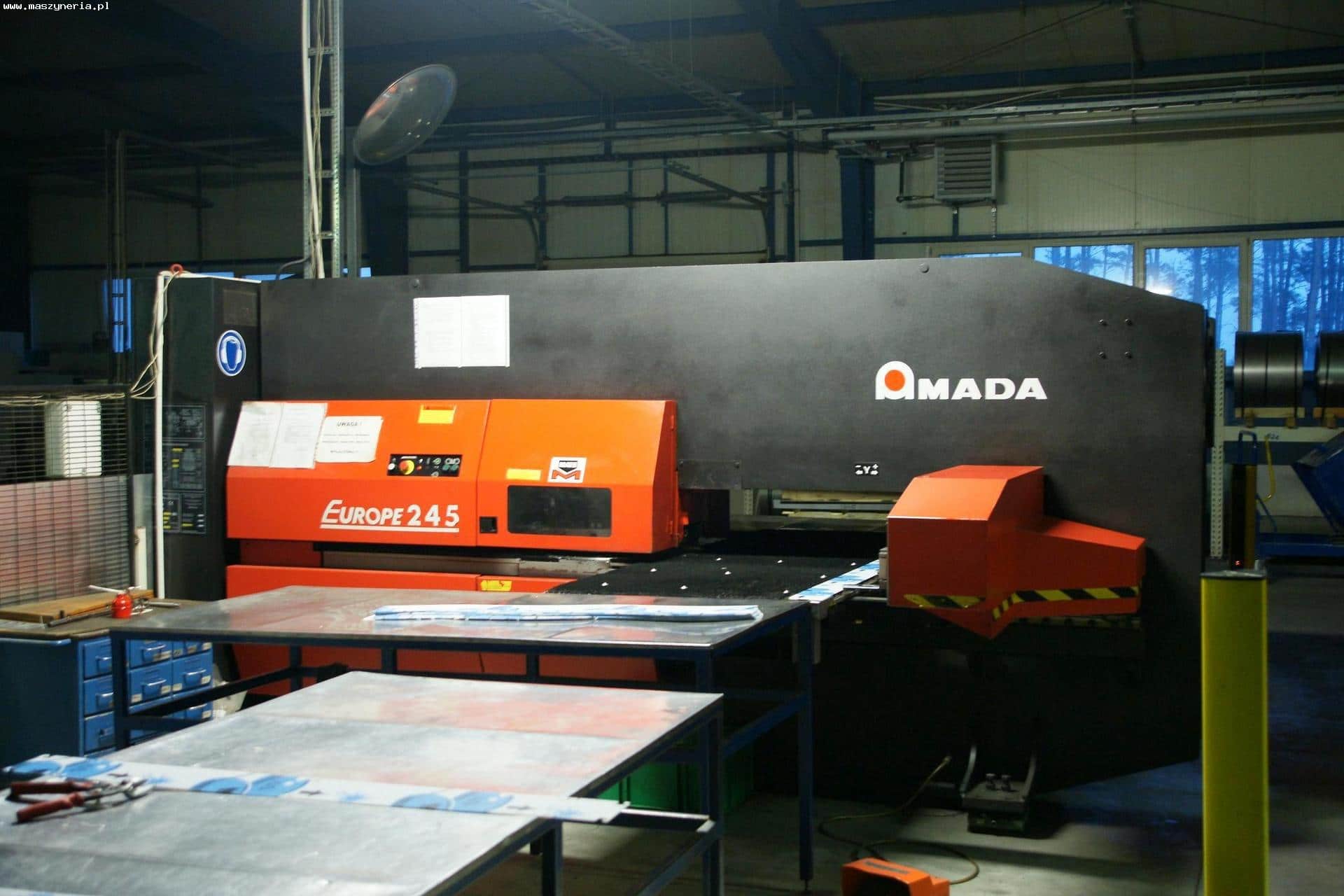

AMADA EUROPE 245 turret punching machine

AMADA EUROPE 245 turret punching machine was built in 2000 (machine installation: 2001). The machine has a pressing force of 20 tons, which allows the sheet to be punched on a ball table with a maximum thickness of 6 mm, and on a brush table with a thickness of 3 mm. It is equipped with FANUC 18 i-P numerical control, which allows for programming in three axes and a work table with an area of ​​400×600 mm. The maximum size of the punched sheet is 2540×1500 mm (with intercept 1 revolution) weighing 100 kg. The press is equipped with a turret magazine which holds 31 tools and rotates at a speed of 25 rpm. The maximum possible punching speed is 480 strokes / minute. The press is in very good condition, it worked on thin sheets. It allows you to work in an automatic cycle and is equipped with control of the gripped sheet metal. The machine is extremely efficient, it allows punching with or without microjoints. The construction of the press guarantees high punching accuracy as well as a long service life of the tools, which will make the operating costs of the machine lower than when using other machines of this type. The price of the machine also includes installation and training in the use of the machine Technical parameters of the AMADA EUROPE 245 turret punch press – CNC control: FANUC 18 i-P – working time: 35,000 h – pressure: 20 t – work table: X = 600, Y = 400 – maximum punching format without intercept and with 31 stations head: 1020 x 1290 (Y-10; Y1010 T2XX; Y-50; Y970 T3XX) – maximum size of a punched sheet with an intercept: 1020 x 2540 mm – maximum size of the sheet to be punched with the intercept 1 revolution (optional): 1500 x 2540 mm – maximum sheet thickness on the ball table: 6 mm – maximum sheet thickness on the brush table: 3 mm – maximum allowable weight on the table: 100 kg – punching accuracy: -0.1 mm – positioning accuracy: -0.07 mm – number of pneumatic clamps / grips: 2 – number of axes controlled simultaneously: 3 (X, Y, C) – revolver speed: 25 rpm. – number of strokes per minute (distance 25.4 mm, cylinder stroke 6.5 mm): 220 strokes / min. – step punching (distance 1 mm, cylinder stroke 6.5 mm): 480 strokes / min. – minimum programmable increment: 0.001 mm – number of tool stations: 31, including 3 rotary ones – maximum tool diameter: 88.9 mm – rotary stations: 2×1 1/4 “; 1×2” – maximum sheet thickness for a rotary station: 3 mm – slider: hydraulic – lower spool travel turning point: 4 programmable points – stop time: 295 ms – air pressure: 5 kg / cm2 (bar) – amount of air: 250 Nl / mn – amount of oil: 160 L – memory capacity: 64 (~ 63 programs) Kb – graphic screen: 10.4 “LCD – light curtain (3 beams): standard in European countries – installed power: 27 kW – dimensions of the machine (length x width x height): 4460 x 2750 x 2130 mm – transport dimensions (L x W x H): 4,820 x 2,500 x 2,414 mm – weight of the punching machine: 10,000 kg – service book with the full history of the machine
