Kenwood, Alinco GX16 Mic Cable for Digirig

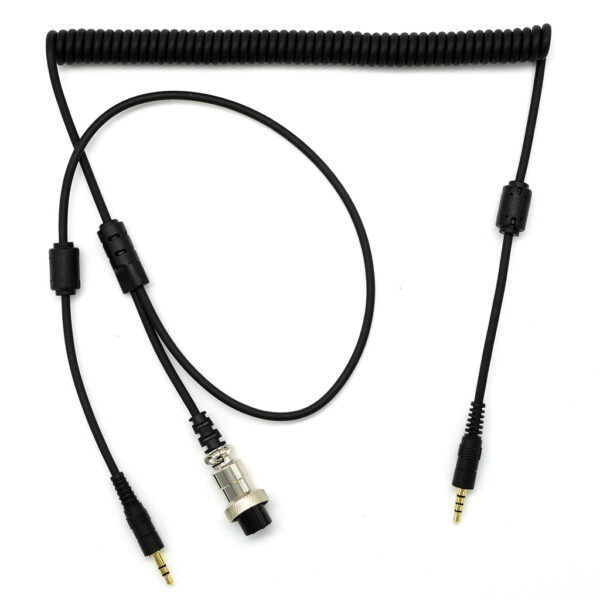

Description Digirig cable for Kenwood, Alinco and other transceivers using the standard GX16 8 pin mic connector with grounded central pin (#8). Use this cable only as a fallback option if no accessory connection is available. coiled cables keep things nice and tidy by preventing knots and kinks provides audio in, audio out and PTT control about 24″ relaxed, 72″ fully stretched shielded and RF choked with ferrite beads on both ends to prevent RFI premium quality materials and craftsmanship This cable is compatible with Digirig Mobile 1.6 (any configuration) as well as other Digirig Models. When using with Digirig Mobile plug 3.5mm TRRS jack into black socket labeled “audio”. ⚠ GX-16 mic connector is common in ham radio with different brands using different pinouts. The cable in this listing uses following pinout: – pin 1 – MIC – pin 2 – PTT – pin 6 – SPK (optional) – pin 7 – GND – pin 8 – GND You can confirm the compatibility by checking the continuity from the central pin (#8) to radio’s chassis. The pinout and homebrew build for this cable are discussed in the community forum. Kenwood, Alinco GX16 Mic Cable for Digirig
