CNC SMD PBH 110-3100-4C press brake

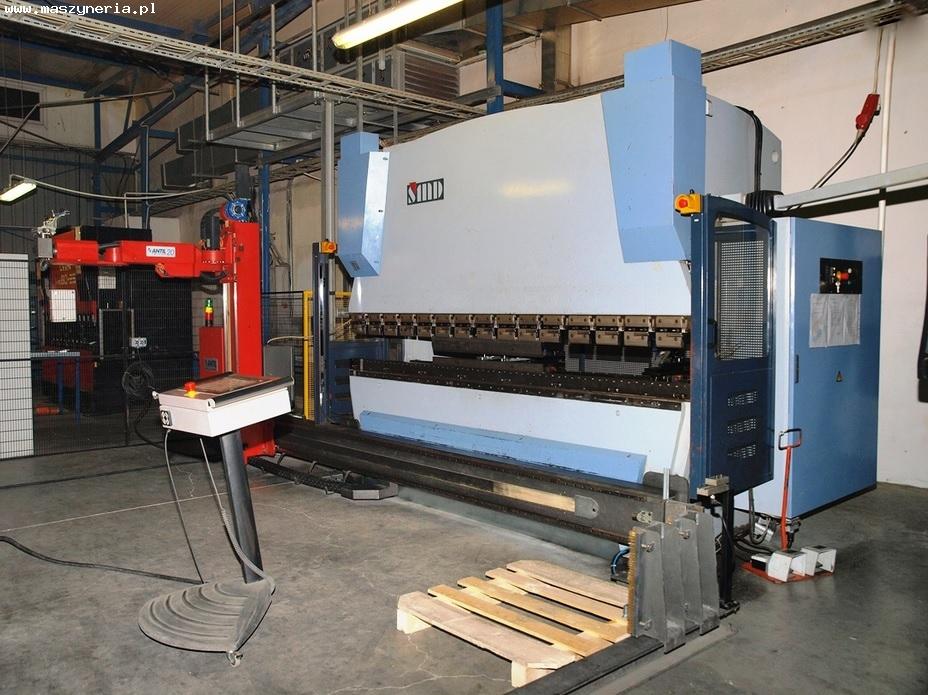

CNC SMD PBH 110-3100-4C press brake was built in 2006. It is equipped with numerical control CYBELEC ModEva 10 and a table with dimensions of 60×960 mm. The machine enables the bending of the element to a width of 3100 mm with a maximum pressure of 110 tons. Processing is possible on a table with a range of 3 m, and palletizing finished elements on three euro-pallets. We offer the folding machine in a set with the ANTIL TWISTER F5 robot. It is adapted to work with the press. In addition, the price includes installation and training in the field of operation. Technical data of the CNC SMD PBH 110 3100 4C press – manufacturer: SMD – type: PBH 110-3100-4C – year of production: 2006 – control: CNC CYBELEC ModEva 10 – working time: approx. 20,000 man-hours – pressing force: 110 tons – bending width: 3100 mm – maximum working speed: 10 mm / s – table width: 60 mm – table height: 960 mm – stroke: 465 mm – frame spacing: 2600 mm – throat: 410 mm – power supply: electric – 11.5 KW, 400 V three phases – oil tank capacity: 250 l – dimensions of the press: 3960 × 2045 × 3650 mm – total weight: 9500 kg Technical data of ANTIL TWISTER F5 robot – producer: ANTIL Italy – model: Robot Twister F5 – year of production: 2006 – software: ANTIL – working time: approx. 1100 man-hours – operating tools: touch screen – joystick – robot work area: 4000x1600x1300 mm – maximum lifting capacity: 20 kg (including the weight of the clamp) – power supply: 6 KVA, 400 V three phases – pneumatic supply: 6 bar – total weight: 760 kg
