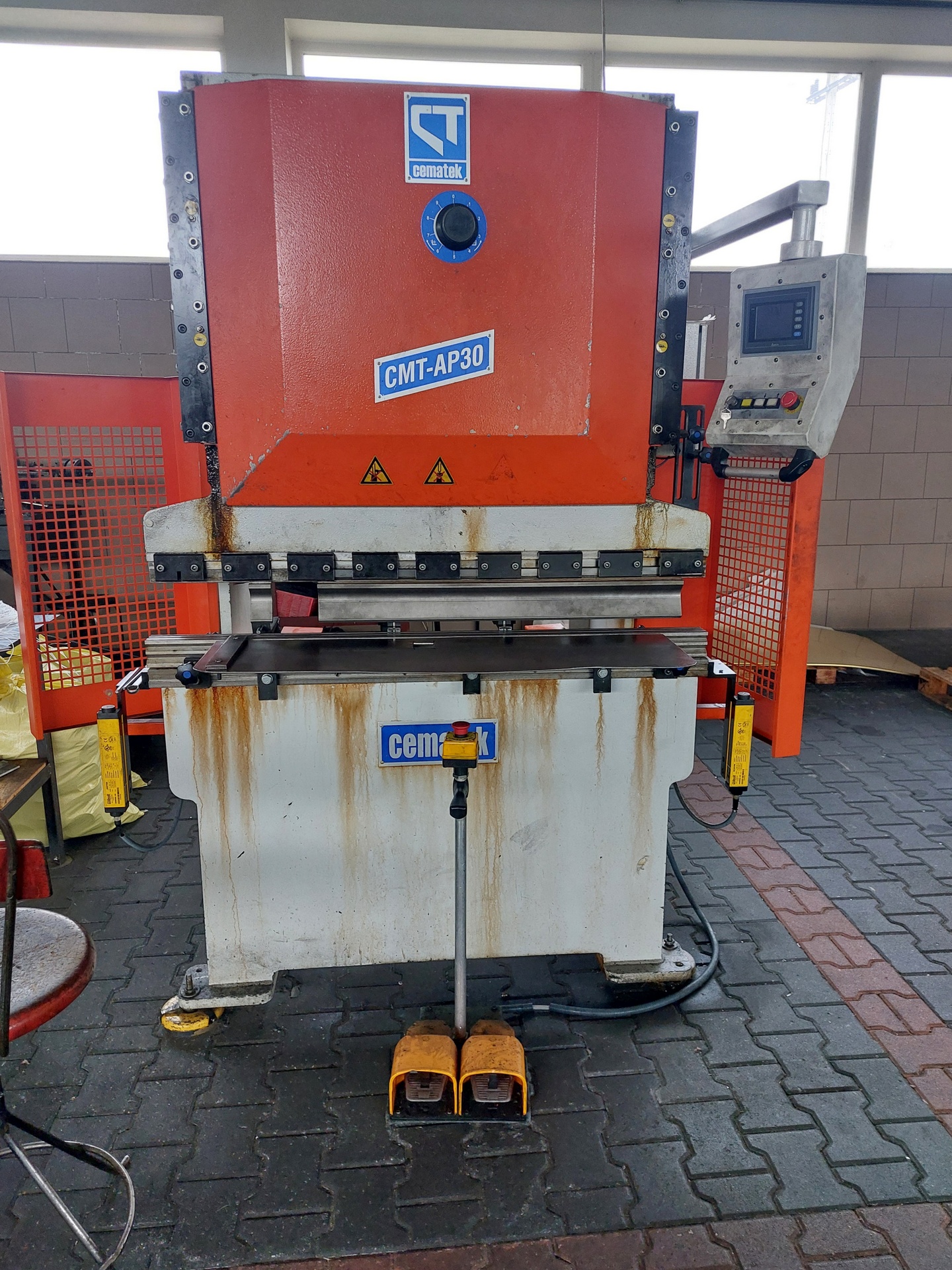

CEMATEK CMT-AP30 NC hydraulic press brake

CEMATEK CMT-AP30 NC hydraulic press brake was built in 2008 in Turkey by Cematek Mühendislik Makina İmalat San. ve Tic. Ltd. Şti. This extremely compact machine is designed for precision bending of sheet metal. It is perfect for both small workshops and larger production plants. The CEMATEK CMT-AP30 is distinguished by its simple operation, high reliability and a press force of 30 tonnes. All necessary working parameters are programmed on the intuitive NC control with touchscreen. All this is complemented by an extremely rigid design that ensures high levels of stability during even the most demanding tasks. The CMT AP30 press brake weighs 2000 kg. Technical specifications of the CEMATEK CMT-AP30 press brake NC controller maximum press force: 30 t (300 kN) bending length: 1260 mm slider stroke: 150 mm back stop stroke: 450 mm approach speed: 33 mm/s bending speed: 8 mm/s return speed: 45 mm/s throat depth: 250 mm foot switch control side covers oil tank capacity: 65 l oil level indicator ambient temperature: 0-40°C noise level: 85 dB(A) motor power: 3 kW back stop motor power: 0,37 kW power supply: 3x 380-400 V dimensions (L x W x H): 1516 x 1050 x 2080 mm weight of the CEMATEK machine: 2000 kg
