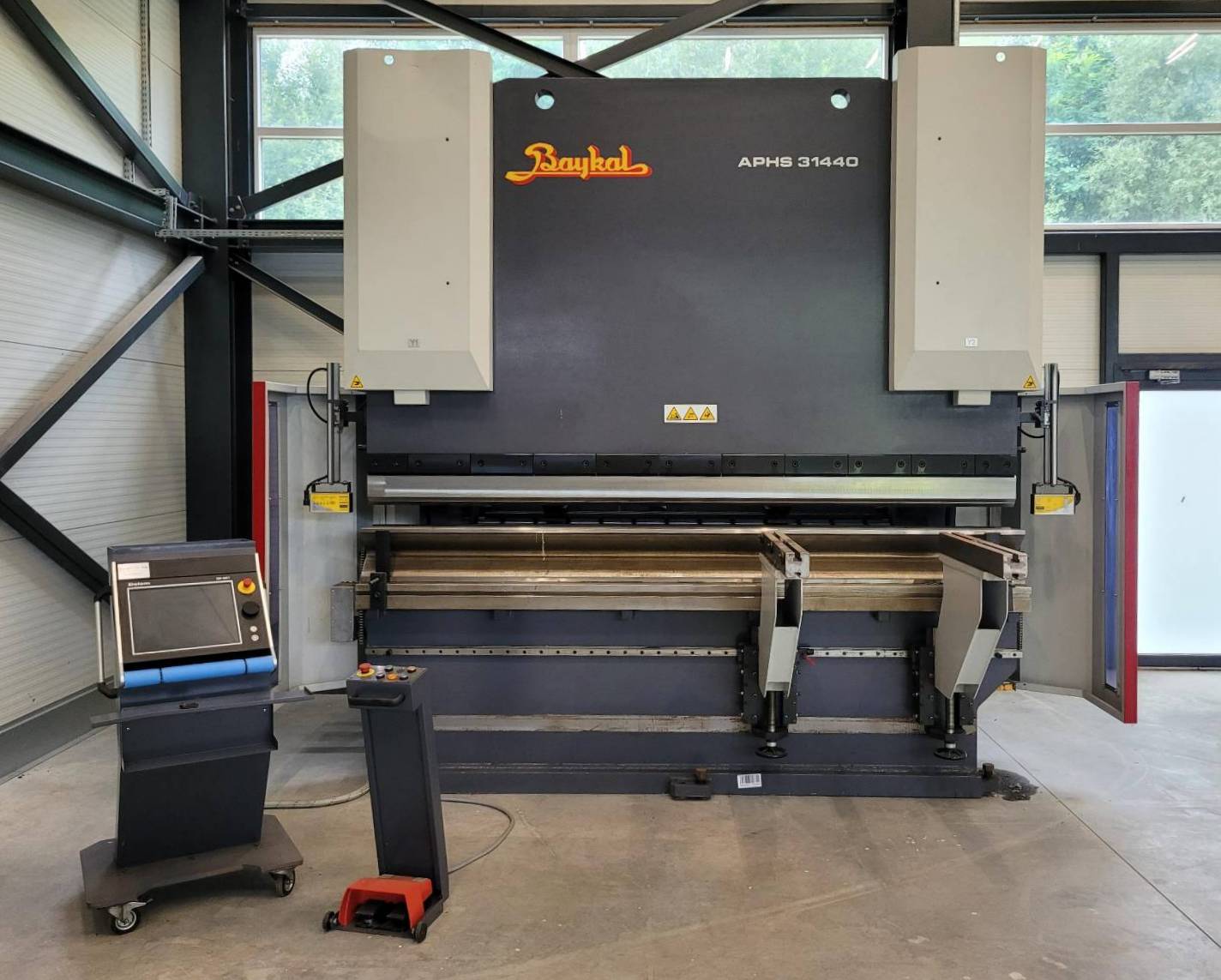

BAYKAL APHS 31440 CNC hydraulic press brake

BAYKAL APHS 31440 CNC hydraulic press brake was built in 2020 in Turkey by BAYKAL MAKINA SANAYI VE TICARET A.Ş. The machine, designed for machining sheet metal with a maximum length of 3100 mm, is distinguished by its high precision, efficiency and reliability. Throughout its entire service life, the machine was used for only 43 hours. Thanks to full electronic synchronisation with proportional valve technology, the installed CNC control constantly monitors and corrects the parallelism of the beam. The use of this solution maximises the accuracy and repeatability of the bending workpieces. The workspace, in turn, is protected by the FIESSLER AKAS laser safety system, which automatically stops the machine if the laser beam is interrupted. All this is complemented by a design made from high-grade ST44-2 steel, which maintains maximum stability during even the most intensive challenges. The APHS 31440 CNC press brake is offered with a wide range of equipment, including an intelligent DELEM CNC controller and a servomotor driven back stop. The total weight of the machine is 23500 kg. Technical specifications of the BAYKAL APHS 31440 press brake maximum press force: 440 t maximum sheet metal length: 3100 mm maximum slider stroke: 330 mm approach speed: 80 mm/s bending speed: 8 mm/s return speed: 70 mm/s total weight of top tools: 700 kg total weight of bottom tools: 1200 kg throat depth: 500 mm work table width: 450 mm distance between columns: 2550 mm stopping time: 80 ms operating hours: 43 h oil tank capacity: 450 l working pressure: 290 bar power: 35 kW power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 4100 x 2200 x 3470 mm weight of the BAYKAL APHS 31440 machine: 23500 kg Equipment of the BAYKAL press brake CNC controller: DELEM DA-66T servomotor driven back stop with ball screws laser safety system: FIESSLER AKAS linear scales for measuring stroke depth electrically interlocked side guards efficient hydraulic system with proportional valve precisely honed cylinders made of high quality forged steel hardened, ground, chrome-plated and polished pistons double slideways in the bending beam foot switch control electrical cabinet with ventilation
