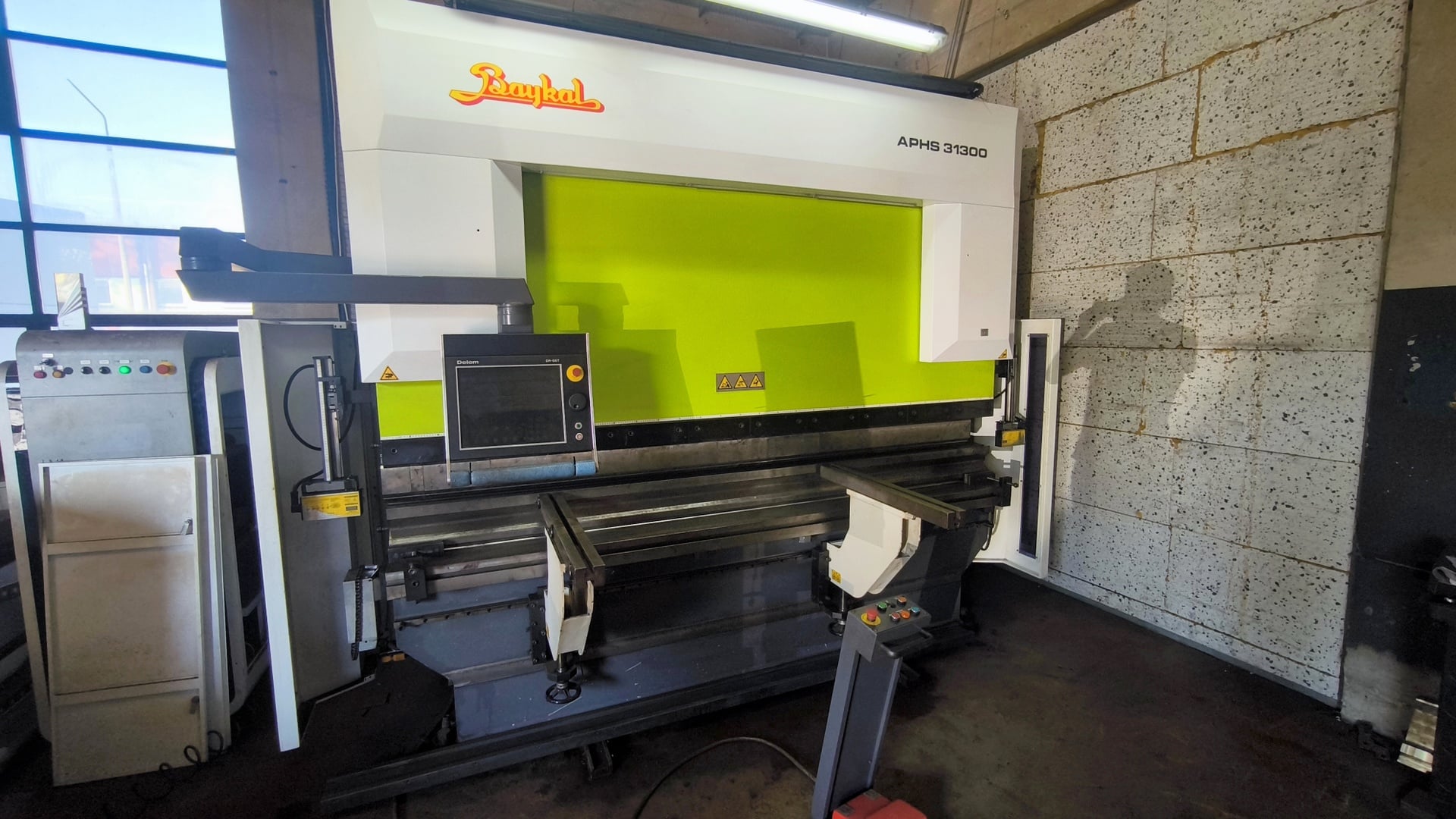

BAYKAL APHS 31300 CNC hydraulic press brake

BAYKAL APHS 31300 CNC hydraulic press brake built in 2020 in Turkey is used for precision machining of sheet metal with a maximum length of 3100 mm. The state-of-the-art components together with a high press force of 300 tonnes ensure excellent bending quality of even the hardest materials. The entire work area is protected by a special system from the renowned German brand FIESSLER ELEKTRONIK, which automatically stops the machine if the laser beam is interrupted. Perfect positioning accuracy during the machining process is in turn ensured by the 5-axis back stop, driven by a powerful servomotor via ball screws. All of this is complemented by the DELEM CNC control, in which advanced machining programmes are created in just a few steps. Over its entire service life the APHS 31300 CNC press brake has worked a total of 782 hours. The total weight of the machine is 15000 kg. Technical specifications of the BAYKAL APHS 31300 press brake number of axes: 3 (Y1,Y2,C) maximum press force: 300 t maximum sheet metal length: 3100 mm work table dimensions (W x H): 380 x 905 mm bending beam stroke: 320 mm approach speed: 110 mm/s bending speed: 8 mm/s return speed: 100 mm/s stopping time: 80 ms clearance: 660 mm reach: 500 mm upper tool weight: 100 kg bottom tool weight: 450 kg back stop reach in X axis: 1000 mm back stop reach in R axis: 160 mm back stop working speed in X axis: 350 mm/s back stop working speed in R axis: 240 mm/s X-axis positioning accuracy: ± 0.03 mm R-axis positioning accuracy: ± 0.05 mm distance between columns: 2550 mm operating hours: 782 h oil tank capacity: 280 l working pressure: 283 bar engine power: 27.7 kW power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 3950 x 2150 x 2925 mm weight of machine: 15000 kg Equipment of the BAYKAL press brake CNC controller: DELEM DA-66T 5-axis back stop with servo motor light curtains: FIESSLER ELEKTRONIK upper tools upper tool adapter for AMADA PROMECAM type attachment (10 pieces) bottom tool adapter for attachment of die with a maximum width of 60.9 mm multi-purpose die BAYKAL HEAVY DUTY type punch attachment two stop fingers on the linear guide two front support arms on linear guide unit and hydraulic components of well-known brands (BOSCH REXROTH, HOERBIGER) foot switch control bending area illumination hydraulic valve position monitoring operating manual in Polish CE declaration of conformity
