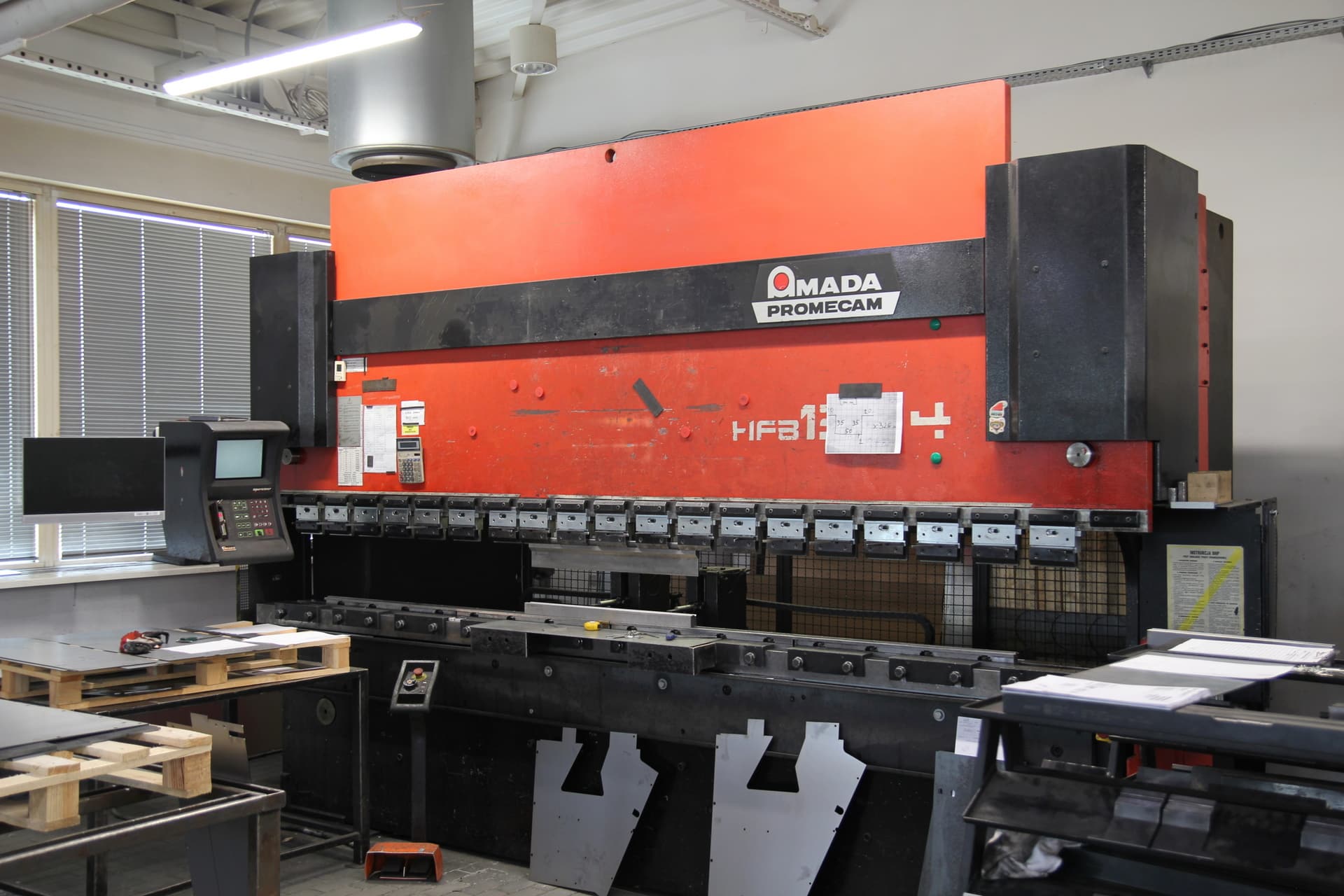

AMADA HFBO 125-40 CNC hydraulic press brake

AMADA HFBO 125-40 CNC hydraulic press brake was built in 1998 in France by AMADA EUROPE S.A. The machine, distinguished by its high productivity and excellent precision, is used for machining sheet metal with a maximum length of 4200 mm. The rigid design combined with a press force of up to 125 tonnes ensures the achievement of the best bending results, regardless of the material type. Daily work, on the other hand, is facilitated by the simple operation of the machine in the form of a convenient foot switch and intelligent CNC control, in which advanced machining programmes are created in just a few steps. The HFB 125/4 CNC press brake weighs 10000 kg. Technical specifications of the AMADA HFBO 125-40 press brake CNC controller: AMADA OPERATEUR number of axes: 8 maximum press force: 125 t (1250 kN) maximum sheet metal width: 4200 mm slider stroke: 180 mm stopping time: 90 ms stopping distance: 9 mm foot switch installed power: 11 kW noise level: <70 dB(A) power supply: 400/415 V; 50 Hz dimensions (L x W x H): 4750 x 2165 x 2890 mm weight of the AMADA HFB 125-4 machine: 10000 kg
