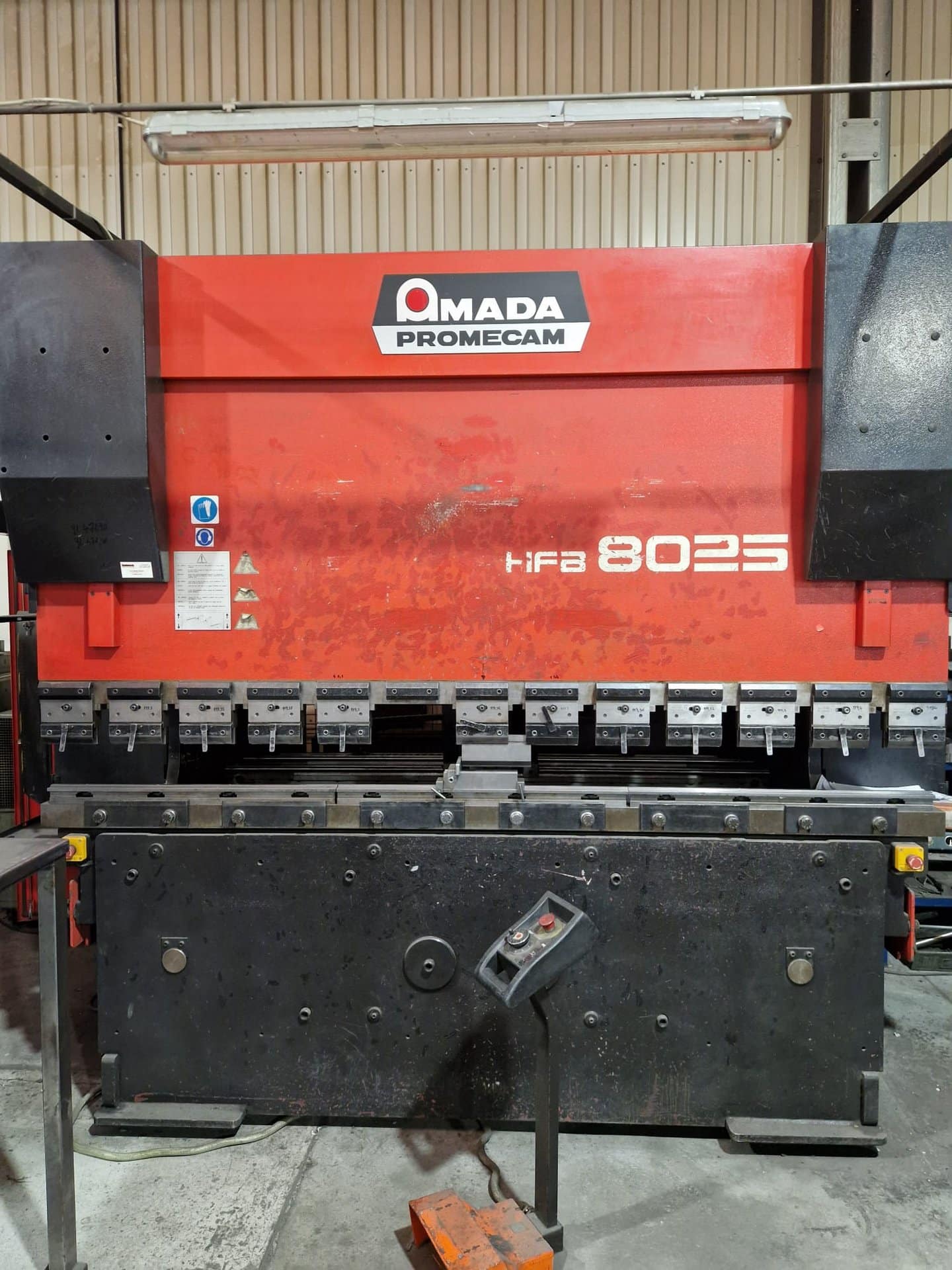

AMADA HFB 8025 CNC press brake

AMADA HFB 8025 CNC press brake was built in 1998. This extremely powerful machine, with its high press force of 80 tonnes, is perfect for even the most intensive machining of metal sheets with a maximum length of 2500 mm. The design, which is made from the highest quality raw materials, additionally ensures exceptional process stability, essential for excellent bending precision. All machining parameters are programmed in the perfectly optimised CNC control, which allows advanced machining programmes to be created in just a few steps. The AMADA HFBO press brake weighs 5750 kg. Technical specifications of the AMADA HFB 8025 press brake CNC controller: AMADA OPERATEUR maximum press force: 80 t (800 kN) maximum sheet metal length: 2500 mm maximum slider stroke: 200 mm stopping time: 60 ms stopping distance: 6 mm foot switch control noise level: <70 dB(A) installed power: 9 kW power supply: 400/415 V; 50 Hz weight of machine: 5750 kg
