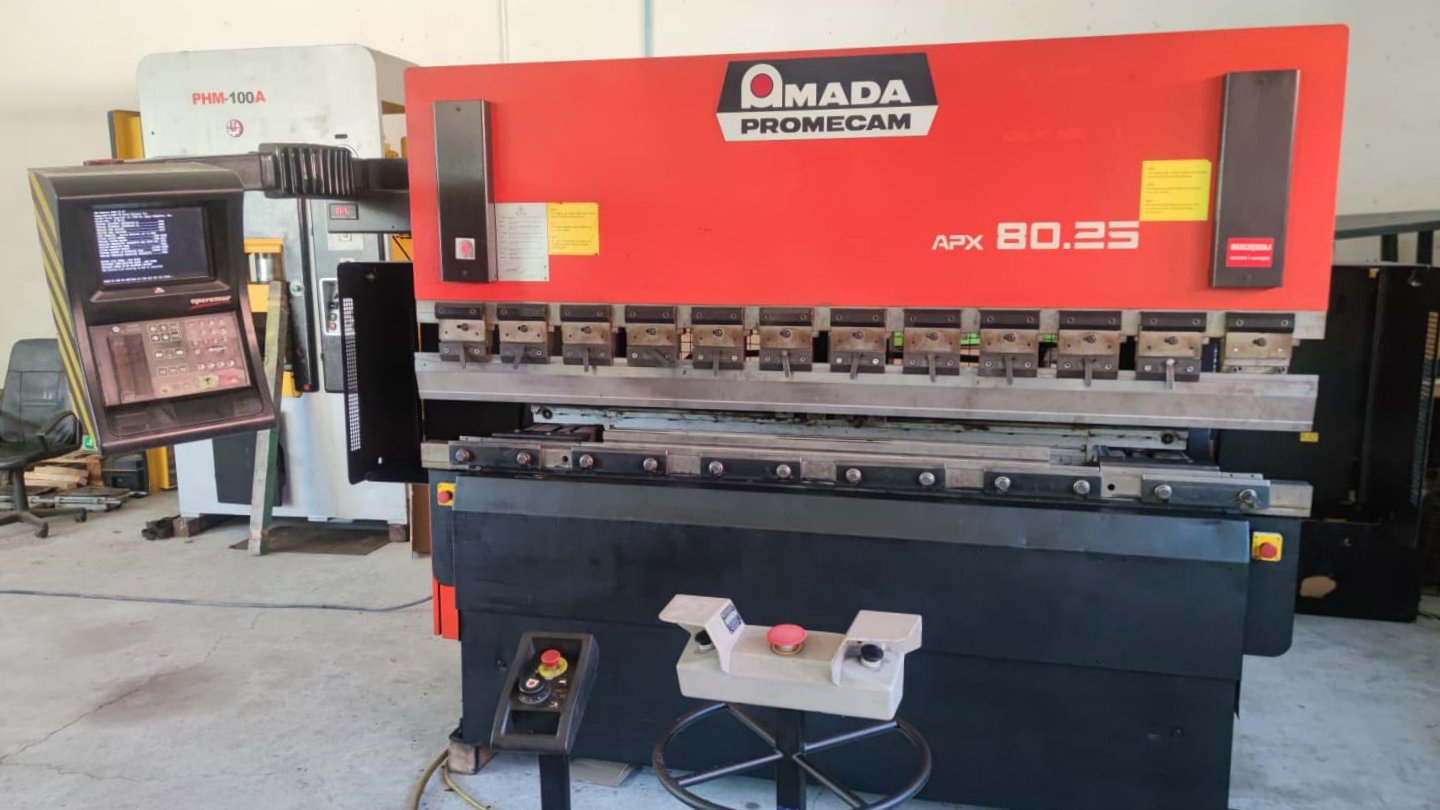

AMADA APX 80-25 CNC hydraulic press brake

AMADA APX 80-25 CNC hydraulic press brake was built in 1996 in France by AMADA EUROPE S.A. In August 2025 an inspection was carried out by the manufacturer’s service, during which filters and hydraulic oil were replaced. The machine, designed for machining sheet metal with a maximum length of 2505 mm, is distinguished by its high precision and reliability. The press force of 80 tonnes, combined with an extremely stable design, guarantees the best bending results during even the most demanding challenges. The multi-axis back stop with independently controlled fingers, in turn, allows each finger to be controlled separately in the left-right, front-back and up-down directions. All this is complemented by an advanced CNC control with an intuitive interface and all the necessary functions. The APX 80/25 CNC press brake weighs 4400 kg. Technical specifications of the AMADA APX 80-25 press brake number of numerically controlled axes: 7 (X1, X2, Y, Z1, Z2, R1, R2) maximum press force: 80 t (800 kN) maximum sheet metal length: 2505 mm maximum slider stroke length: 100 mm work table surface (L x W): 2500 x 60 mm work table height: 940 mm reach: 400 mm distance between columns: 2050 mm approach speed: 73 mm/s bending speed: 9 mm/s return speed: 80 mm/s response time: 100 ms stopping time: 50 ms stopping distance: 9 mm safety distance: 800 mm operating hours: 64686 h number of cylinders: 3 oil tank capacity: 70 l maximum air pressure: 300 bar motor power: 9 kW power supply: 3x 400/415 V; 50 Hz dimensions (L x W x H): 3300 x 2200 x 2100 mm weight of the AMADA APX 80-25 machine: 4400 kg Equipment of the AMADA press brake CNC controller: AMADA OPERATEUR multi-axis back stop with independently controlled fingers side guards foot switch control manual control
