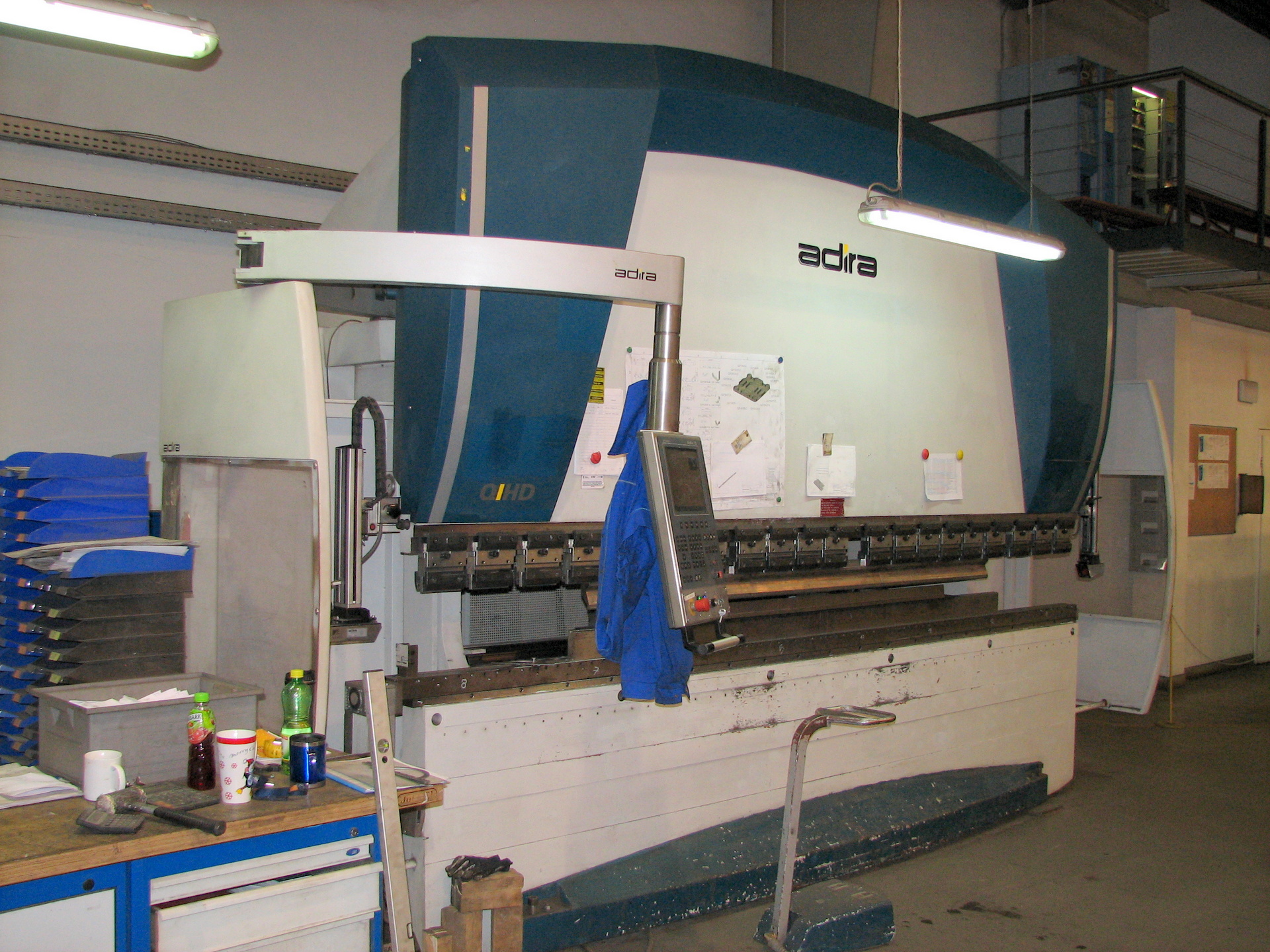

ADIRA QIHD-32040 PLS CNC hydraulic press brake

ADIRA QIHD-32040 PLS CNC hydraulic press brake was built in 2000 in Portugal by A. DIAS RAMOS MÁQUINAS FERRAMENTAS LDA. This highly efficient machine is an excellent choice for the economical machining of the sheet metal with a maximum length of 4000 mm. Its combination of rigid design with a high press force of up to 320 tonnes guarantees the best bending results, even during the most intensive challenges. What’s more, CYBELEC’s intuitive CNC control significantly simplifies the use of the machine, by enabling the creation of advanced machining programmes in just a few steps. The ADIRA CNC press brake weighs 19500 kg. Technical specifications of the ADIRA QIHD-32040 PLS press brake CNC controller: CYBELEC ModEva 12S maximum press force: 320 t (3200 kN) maximum sheet metal length: 4000 mm maximum slider stroke: 200 mm minimum slider stroke: 15 mm approach speed: 70 mm/s bending speed: 7.9 mm/s operating hours: 57715 h maximum pressure of hydraulic system: 200 bar main motor power: 16.5 kW power supply: 400 V; 50 Hz weight of the ADIRA QIHD-32040 PLS machine: 19500 kg
