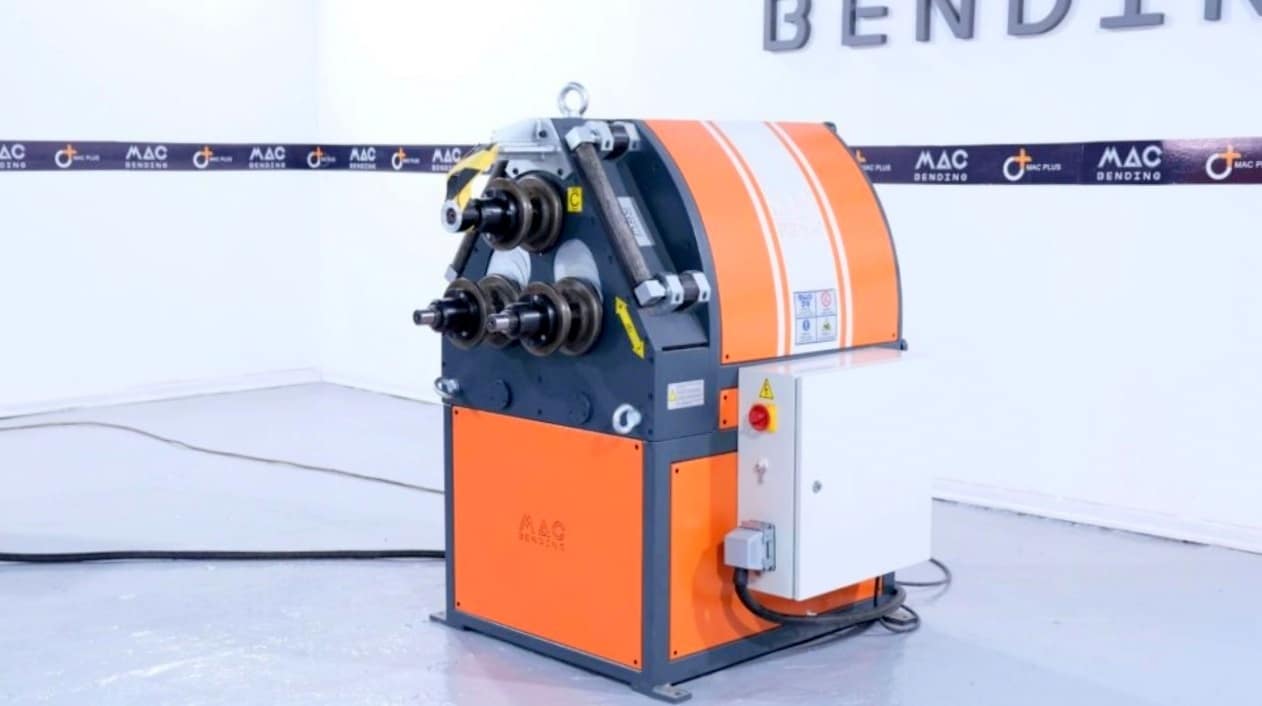

MAC BENDING PBM 60 hydraulic tube and profile bending machine

MAC BENDING PBM 60 hydraulic tube and profile bending machine was built in Turkey by Mac Bending Dış Ticaret A.Ş. The machine is brand new, post-show and comes with a manufacturer’s warranty. The MAC BENDING tube and profile bending machine is used in the machining of tubes and profiles with high bending resistance, both vertically and horizontally. The process is performed by means of 2-axis guide shafts and three separate rollers, driven by an electric motor and gearbox. A special support device protects the upper roller from bending, thus preventing the material from sagging. The technical solutions used in combination with reliable components offer the highest production precision for many years of use. All the machining parameters are programmed in the intuitive NC control unit, installed on a mobile operator panel. When the operator is not working, the machine goes into sleep mode for a user-defined period of time. This function saves energy considerably and also extends the life of the machine. The PBM 60 tube and profile bending machine weighs 1080 kg. Technical data of the MAC BENDING PBM 60 tube and profile rolling machine machining capability: round workpieces, elliptical workpieces, rectangular workpieces, square workpieces, tubes, angles, T-sections, NPU, INP, IPE, HEA, HEB, HEM number of rollers: 3 diameter of rollers: 177 mm diameter of shafts: 60 mm number of working speeds: 2 ability to bend serpentines with variable pitch ability to work both horizontally and vertically dimensions (L x W x H): 1300 x 1000 x 1400 mm weight of the MAC BENDING PBM 60 machine: 1080 kg Equipment of the PBM 60 bending machine operator panel with NC control PLC control 2-axle guide shafts telescopic front guards speed compensation of the driven rolls encoder overload protection system acoustic-light warning system remote connection via internet
