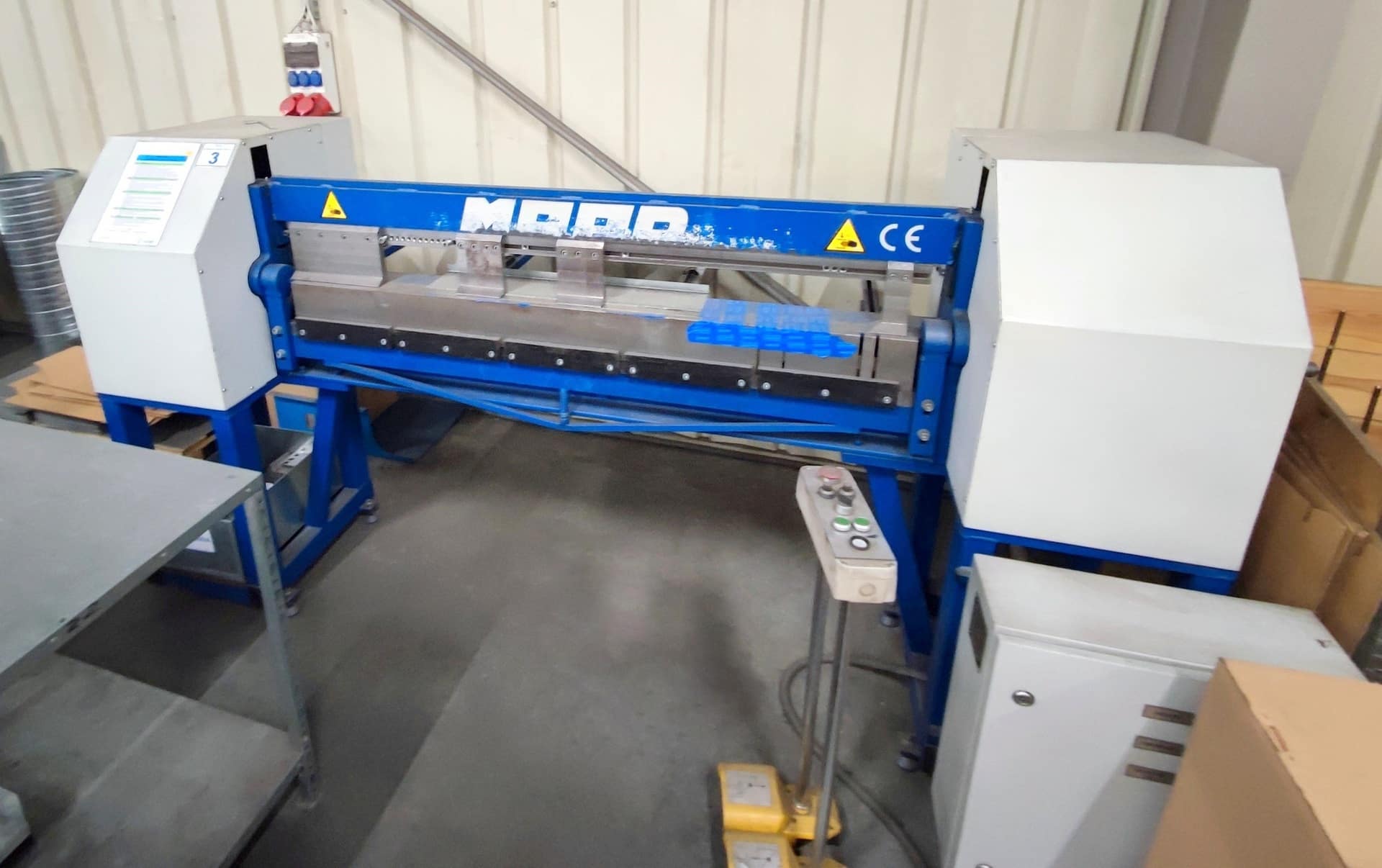

MAAD HSSM 1550/1.5 folding machine

MAAD HSSM 1550/1.5 folding machine which was built in Poland in 2017, is designed for folding thin steel sheets with a maximum thickness of 1.5 mm along a straight line at a specific angle. This functional machine, based on an innovative design, guarantees comfortable operation and a wide range of applications, which makes it ideal for many different industries. The MAAD segment folding machine has a clamping bar and a bending bar equipped with interchangeable segment knives of different lengths. Mounted on inbus screws, the segments are made of the highest quality steel, which ensures long-lasting operation of the machine while maintaining excellent bending parameters. After pressing a button on the control panel, the HSSM 1500/1.5 electric segment bending machine operates in automatic mode. The bending bar moves to the set angle and then returns to its initial position. The total weight of the machine is 750 kg. Technical specifications of the MAAD HSSM 1550/1.5 folding machine working width: 1550 mm maximum workpiece thickness (Rm < 400 Mpa): 1.5 mm bending angle range: 0-150° bending bar width: 20 mm clearance between bars: 80 mm foot control power supply: 3x 400 V; 50 Hz weight of machine: 750 kg
