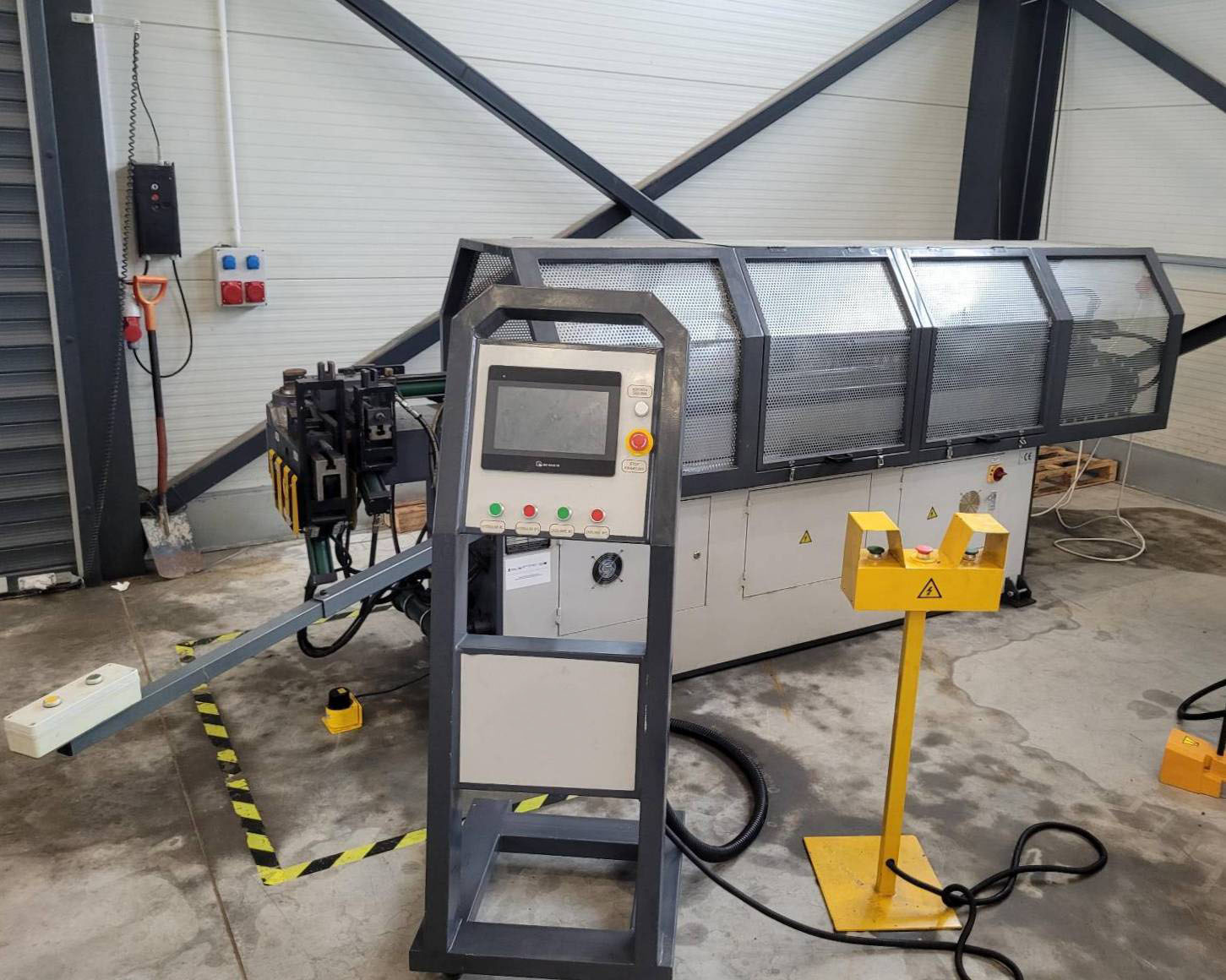

GM-SB-38CNC-2A1S tube bending machine

GM-SB-38CNC-2A1S tube bending machine was built in 2019 in China by ZHANGJIAGANG KING-MACC MACHINERY MANUFACTURING CO., LTD. The machine, distinguished by its high precision and ease of operation, is used for bending tubes and profiles with a maximum diameter of 38 mm. All process parameters, including even the most complex shapes, are programmed in an intuitive PLC controller with memory for up to 200 work programmes. Thanks to the high degree of automation, the offered GM-SB-38CNC mandrel bending machine is an indispensable tool in any production facility. The total weight of the machine is approximately 1500 kg. Technical specifications of the GM-SB-38CNC-2A1S tube and profile bending machine operator panel with PLC controller bending capacity: ⌀ 38×2 mm maximum bending angle: 180° maximum bending radius: 200 mm minimum bending radius: 20 mm mandrel length: 3200 mm bending speed: 65°/s tube rotation speed: 180°/s feeding speed: 900 mm/s bending accuracy: ± 0,1° rotation angle accuracy: ± 0,1° feeding accuracy: ± 0,1° maximum working pressure: 160 kg/cm power: 4 kW power supply: 400 V; 50 Hz dimensions (L x W x H): 4000 x 700 x 1300 mm weight of the GM-SB-38CNC-2A1S machine: approx. 1500 kg
