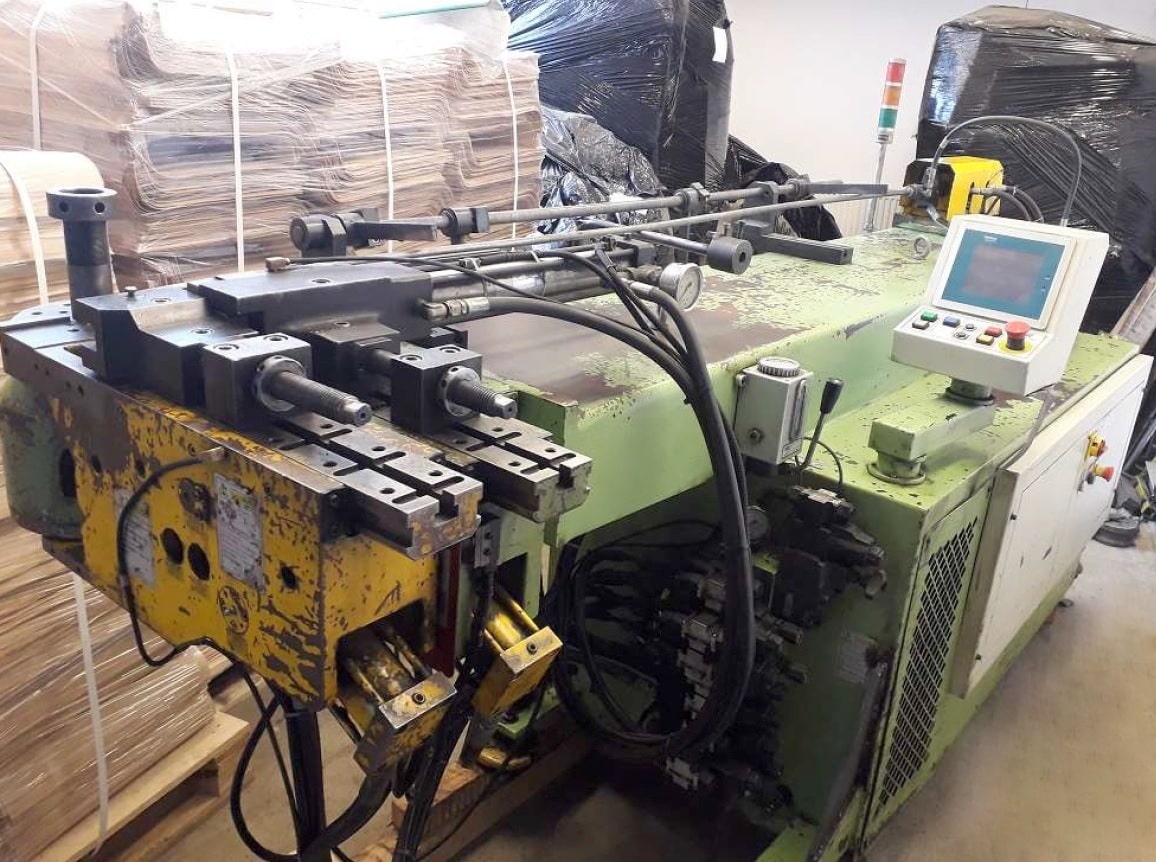

CSM 50 TNCB tube bending machine

CSM 50 TNCB tube bending machine built in 2005 in Taiwan stands up to even the most intensive machining of round, square and oval tubes. The machine distinguished by its extremely stable design and the use of reliable components operates in semi-automatic mode. The bending head is hydraulically driven, while linear movements and rotations are performed manually by the operator. The operator can also control the operation of the machine using an intuitive NC controller. The controller’s memory can store up to 50 machining programmes with 10 bending angles each, including correction for material elasticity. All of this makes the CSM A50 TNCE mandrel bending machine the perfect solution for manufacturing plants that place an emphasis on accuracy and precision. The CSM 50 TNCB mandrel bending machine weighs 1200 kg. Technical data of the CSM 50 TNCB NC tube bending machine NC control HMI panel: HITEC bending capacity (plain steel): 50 x 3 mm bending capacity (stainless steel): 50 x 1.8 mm bending capacity (rectangular tube, plain steel): 40 x 2.5 mm mandrel working length: 2200 mm maximum bending angle: 190° maximum bending radius: 250 mm minimum bending radius: 35 mm foot control motor power: 5.5 kW dimensions (L x W x H): 3000 x 1200 x 1000 mm weight of machine: 1200 kg
