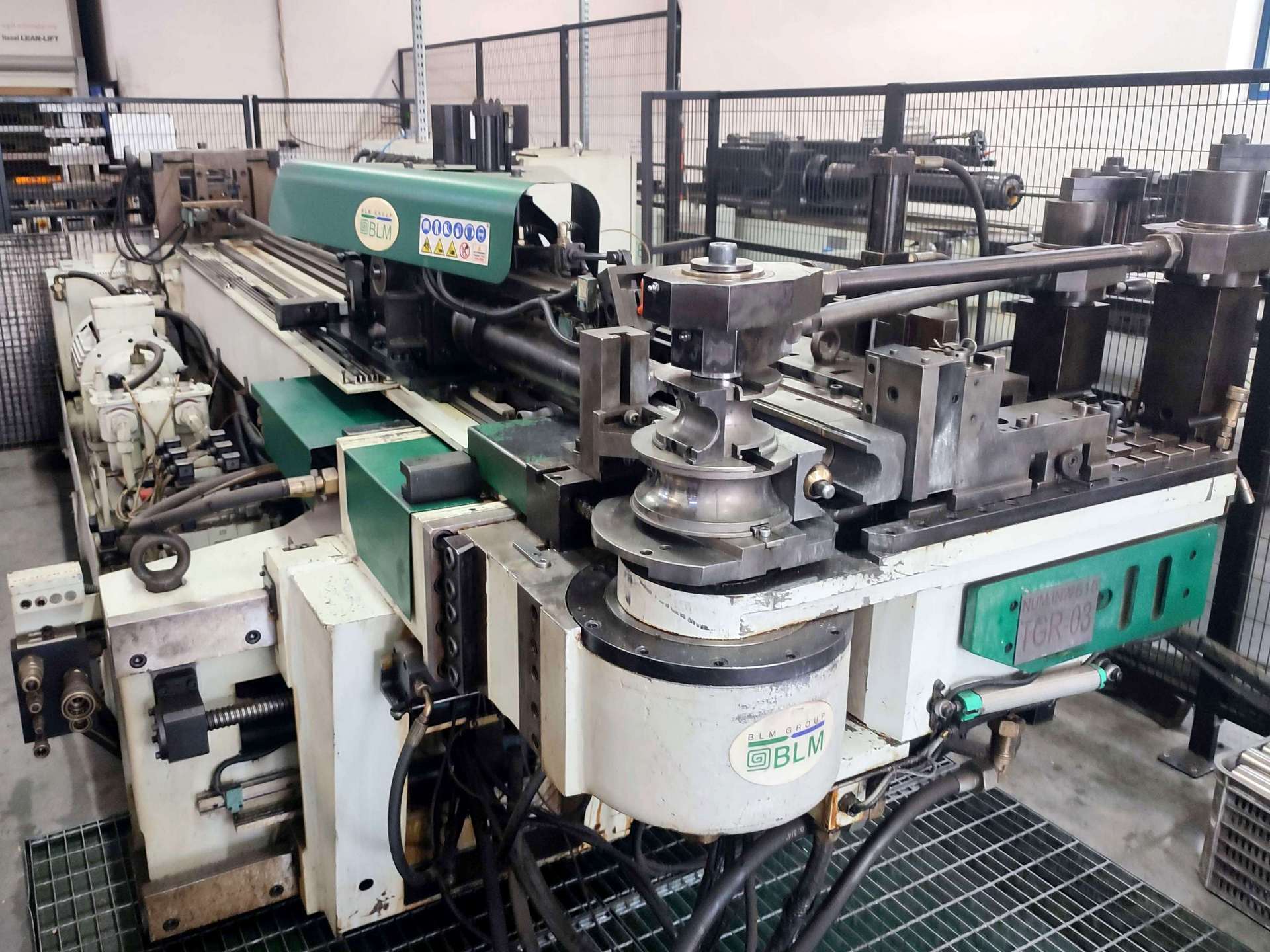

BLM DYNAM 3 CNC tube bending machine

BLM DYNAM 3 CNC tube bending machine was built by BLM S.P.A. in Italy in 1999. Distinguished by its high productivity and bending accuracy, the machine is an indispensable tool in any production facility. The applied technical solutions and reliable components make it possible to perform fully automatic, serial bending of profiles and tubes with a maximum diameter of 60 mm. All process parameters are entered on an intuitive CNC controller with many functions that facilitate the programming of even the most complex shapes in just a few steps. Throughout its lifetime, the DYNAM 3 mandrel bending machine has been regularly serviced. The total weight of the machine is 5070 kg. Technical specifications of the BLM DYNAM 3 CNC tube and profile bending machine CNC control system: BLM FNC 2000 R maximum tube diameter: 60 mm tool set for bending tubes Ø 25 mm lubricant pump: FLENCO grease tank capacity: 3 dm3 control cabinet operating hours: 15543 h power supply: 3x 400 V; 50 Hz weight of control cabinet: 400 kg weight of machine BLM DYNAM 3: 5070 kg
