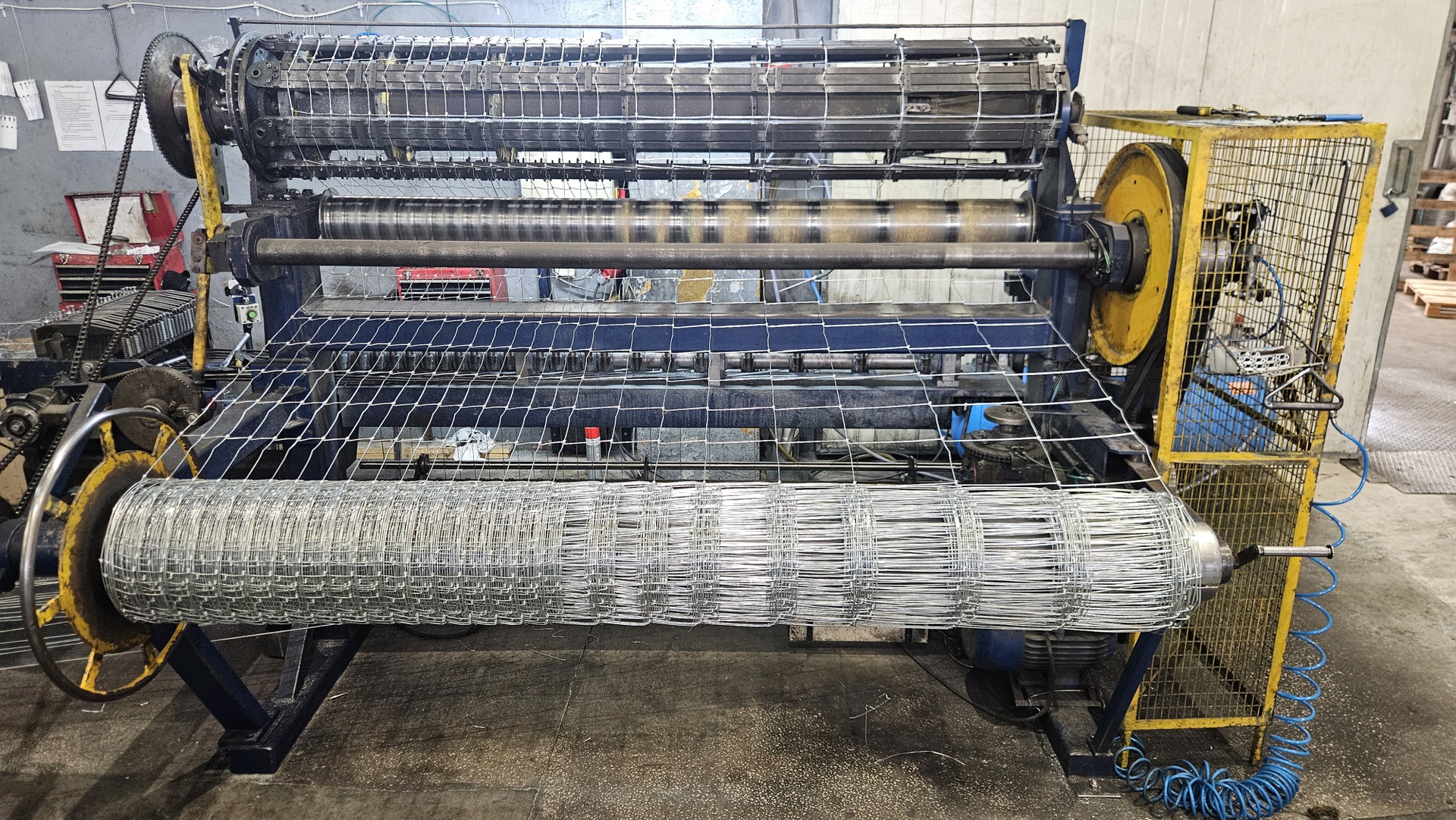

LS6/4 knotted mesh production machine

LS6/4 knotted mesh production machine was built in 2006 in Poland by Maszyny S.C. The machine enables the efficient production of durable and damage-resistant L-, M-, S- and SL-type mesh. The entire production process, from wire feeding to net braiding, is performed fully automatically. Technical specifications of the LS6/4 fixed knot fence production line type of produced net: L, M, S, SL maximum height of the produced net: 200 cm vertical wires spacing: 15 or 30 cm number of horizontal wires: 25 pcs. edge wires diameter range: 1.8-3 mm inner wires diameter range: 1.5-2.5 mm edge wires maximum stress: Rm=1200 MPa horizontal wires maximum stress: Rm=450 or 1150-1200 MPa vertical wires maximum stress: Rm=450-500 MPa
