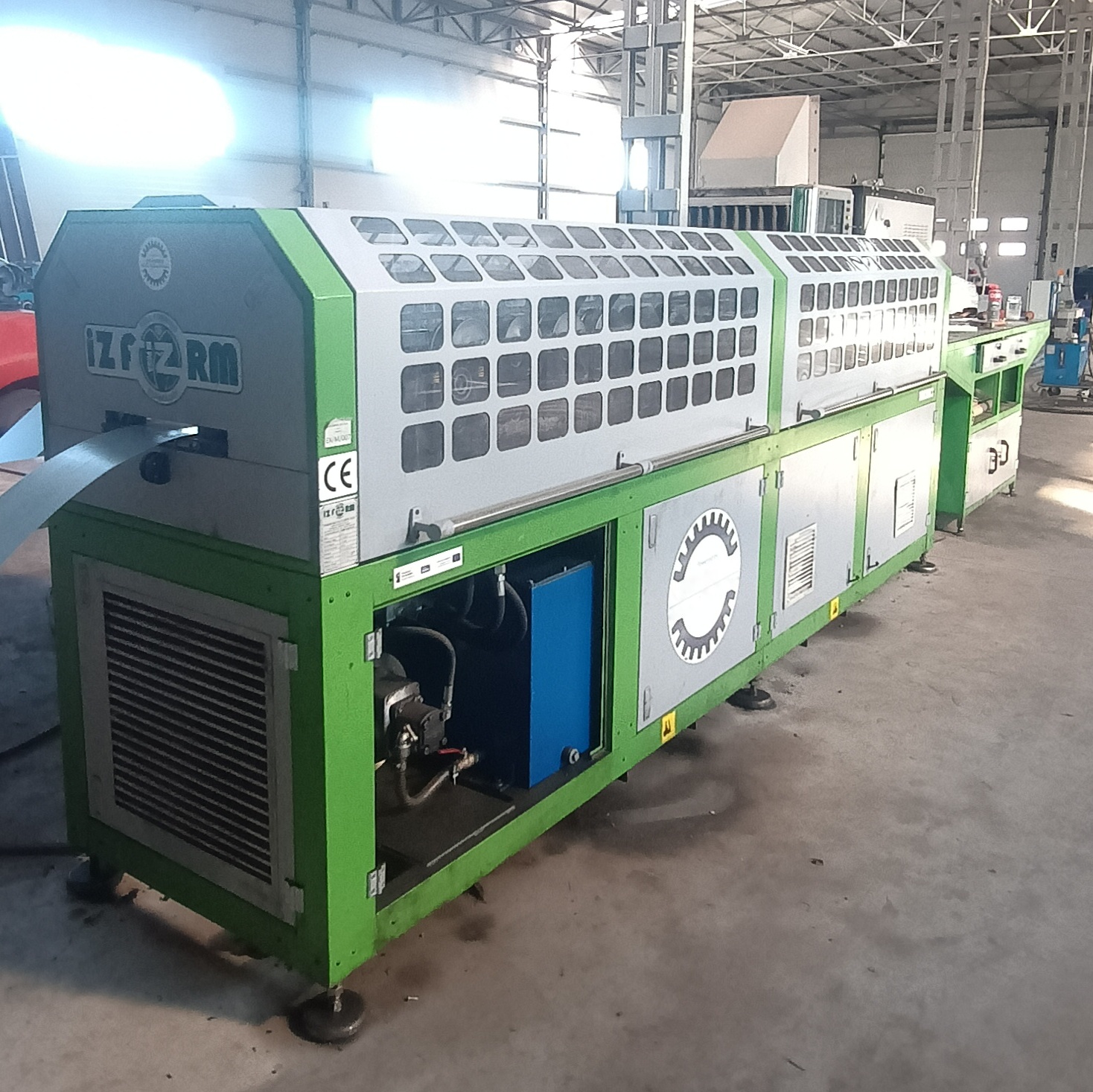

IZAN MAKINA IZFORM IZ5 roll forming line

IZAN MAKINA IZFORM IZ5 roll forming line was built in 2019 in Turkey by İzan Makina – İmalat İnşaat İç ve Dış Ticaret Limited Şirketi. This line, distinguished by the use of the state-of-the-art technology available on the market, is designed for frame constructions. Its extensive machining capabilities allow for the precise, fully automatic forming of C- and U-type cold-formed profiles of various dimensions. These elements are used, among others, in partition walls and bathroom modules. The IZAN MAKINA IZFORM IZ5 profiling machine is offered with extensive equipment, including advanced BIM software and a sheet metal decoiler with a maximum capacity of 3 tonnes. The IZAN MAKINA IZ5 roll forming machine is currently configured for the production of C75x1.2mm and C100x1.2mm profiles. The production cycle is performed by means of a reliable tool head with the following machining capabilities: – rivet hole – service hole (diameter 32 mm) – notching – swaging – flattening – cutting Technical specifications of the IZAN MAKINA IZFORM IZ5 profiling machine profile size: 75/90/100/140/150 mm profile type: C, U maximum strip thickness: 2 mm minimum strip thickness: 0.5 mm working speed: 500 m/h sheet metal decoiler capacity: 3000 kg oil tank capacity: 90 l installed power: 18 kW ambient temperature: -10°C/ 40°C power supply: 3x 380-400 V; 50/60 Hz dimensions (L x W x H): 3800 x 850 x 1550 mm weight of the IZAN MAKINA machine: 2750 kg Equipment of the IZFORM IZ5 roll forming line operator panel with touch screen and Windows 7 OS BIM (Building Information Modelling) software: VERTEX BD FRAMER production software: IZFORM OS ability to form cordon on profile flanges sheet metal decoiler inkjet printer electronically controlled automatic tool-head lubrication system (The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
