ITALMEC TSR 300/1 6 wire drawing line

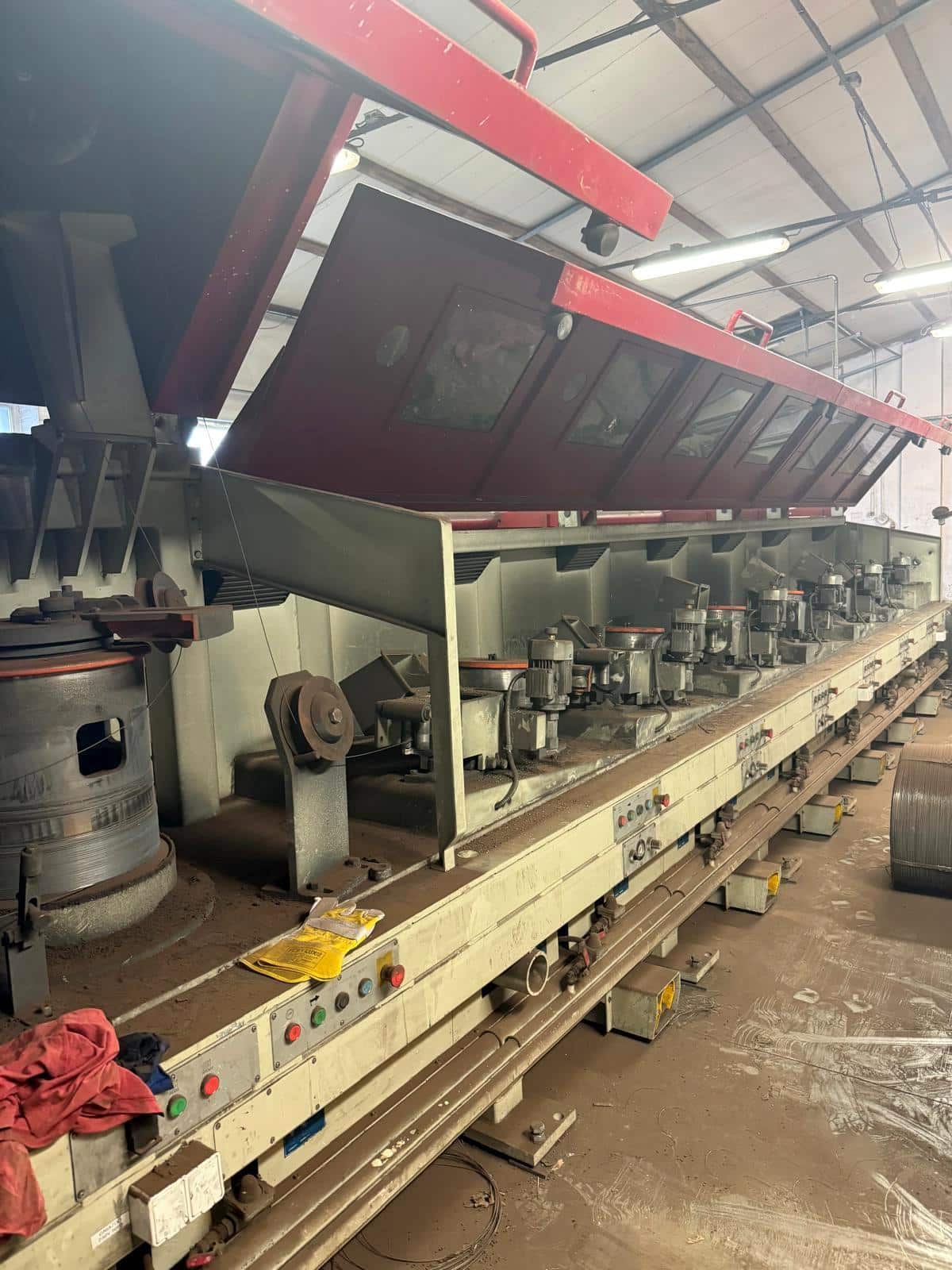

ITALMEC TSR 300/1 6 wire drawing line was built in 2020 in Poland by EJP Italmec Sp. z o.o. The purpose of the line is to reduce the diameter of various types of wire, i.e. steel wire or welding wire, by pulling it through a series of rollers. This process is performed fully automatically, thanks to the use of two additional devices – a wire pay-off and a wire coiler. The wire drawing line consists of the following parts: 1. ITALMEC TSR 300/1 6 wire drawing machine 2. ITALMEC SB2C vertical static wire pay-off with compensator 3. ITALMEC AHSC 30 horizontal static wire coiler The ITALMEC wire pay-off with rotating arm precisely unwinds material from spools, coils or racks towards the drawing machine without stopping it. It is equipped with a special device that stops the machine in case of wire breakage and a compensator that accumulates the amount of wire necessary to stop the machine without wire breakage when a knot is detected. After each reduction, the wire is wound onto one of seven drums. The finished product with the reduced diameter is confectioned directly onto a carousel or stand. Technical data of the individual parts of the ITALMEC TSR 300/1 6 wire drawing line Dry drawing machine year of manufacture: 2020 material type: low and high carbon steel wire, CO2 welding wire, sub arc wire, flux cored wire number of drums: 7 maximum inlet wire diameter: 2.5 mm maximum outlet wire diameter: 1 mm capstan diameter: 300 mm sensor control and dancer arm control safety protection in accordance with current standards Vertical wire pay-off year of manufacture: 2020 wire diameter range: 1-3.5 mm maximum external diameter of spool, coil or stand: 1000 mm maximum operating speed: 3 m/s compensator device that stops the machine in the event of wire breakage Horizontal wire coiler year of manufacture: 2020 material type: low-, medium- and high-carbon wire capstan diameter: 300 mm maximum wire diameter: 5 mm
