ELECTROMASHSTAN EMC-SP/3/05 Sigma roll forming line

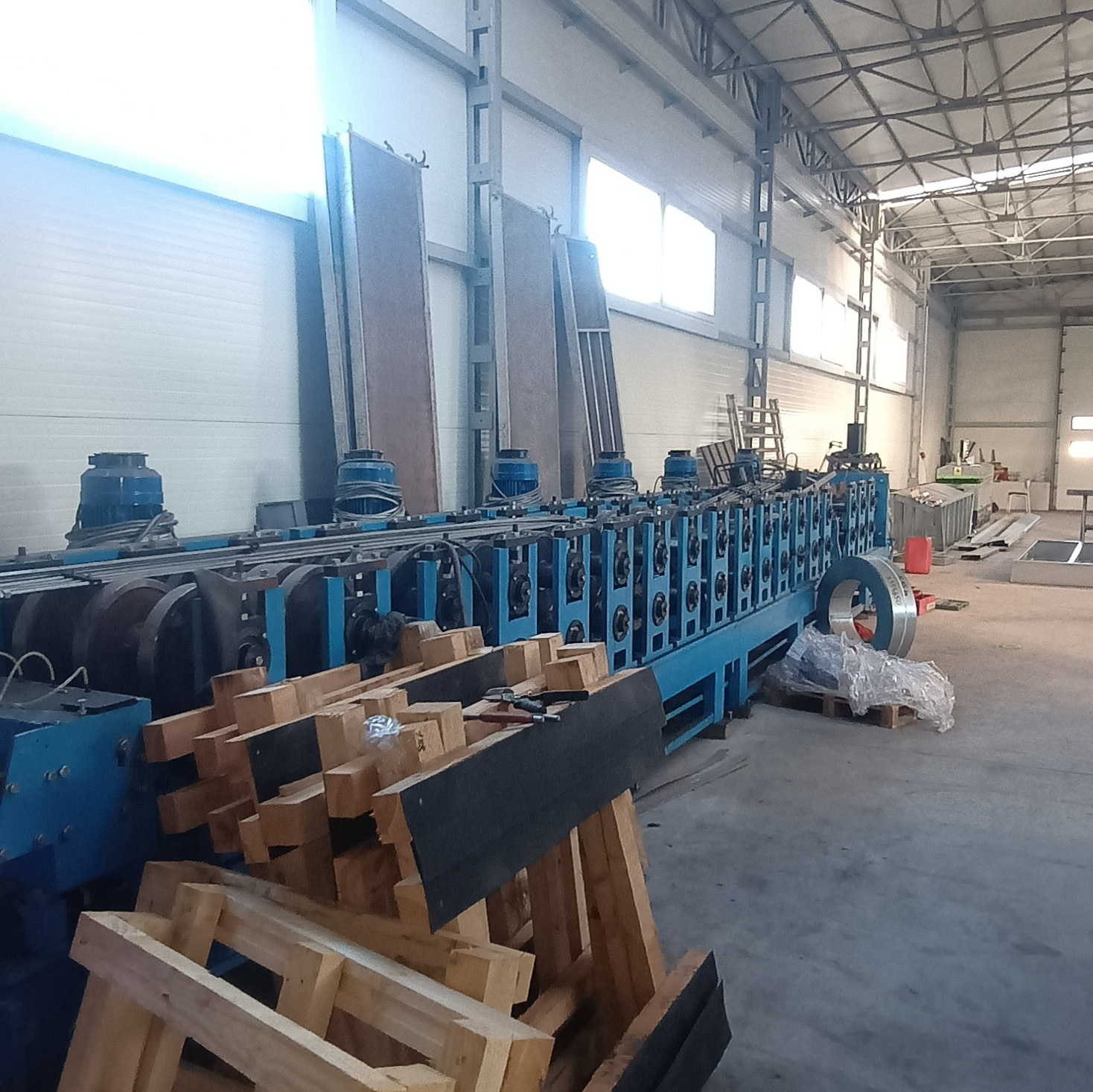

ELECTROMASHSTAN EMC-SP/3/05 Sigma roll forming line was built in 2019 in Ukraine by ElectroMashStan. The line is designed for the production of precision Sigma-type cold-formed profiles, which are used in among others steel structures, load-bearing elements and supports. The production cycle is fully automatic, thanks to the use of an automatic sheet decoiler. The strip with a maximum thickness of 3 mm is uncoiled towards the workspace, where it is formed using rollers. The ELECTROMASHSTAN roll forming line offered is fully complete. Applications for Sigma profiles: – steel constructions (halls, warehouses, industrial buildings) – prefabricated buildings and light steel construction systems – load-bearing elements (girders, columns, beams) – brackets, bracing and structural frames – wherever a high load-carrying capacity is required in a relatively lightweight construction Technical specifications of the ELECTROMASHSTAN EMC-SP/3/05 profiling machine material type: galvanised steel, galvanised steel with polymer coating, hot-rolled steel maximum profile length: unlimited maximum number of mounting holes: unlimited maximum strip thickness: 3 mm minimum strip thickness: 1 mm working speed: 50 m/min profile length axis accuracy: ± 1 mm operating mode: automatic, manual, service mode roller drive: asynchronous with MITSUBISHI inverter decoiler drive: asynchronous with MITSUBISHI inverter strip feed sensor: AUTONICS rotary pulse encoder Equipment of the ELECTROMASHSTAN Sigma profile production machine operator panel with programmable industrial controller automatic sheet metal decoiler guillotine with profile knife and CARLO GAVAZZI sensors hydraulic punch for mounting holes with CARLO GAVAZZI sensors forming rollers automatic lubrication system (The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
