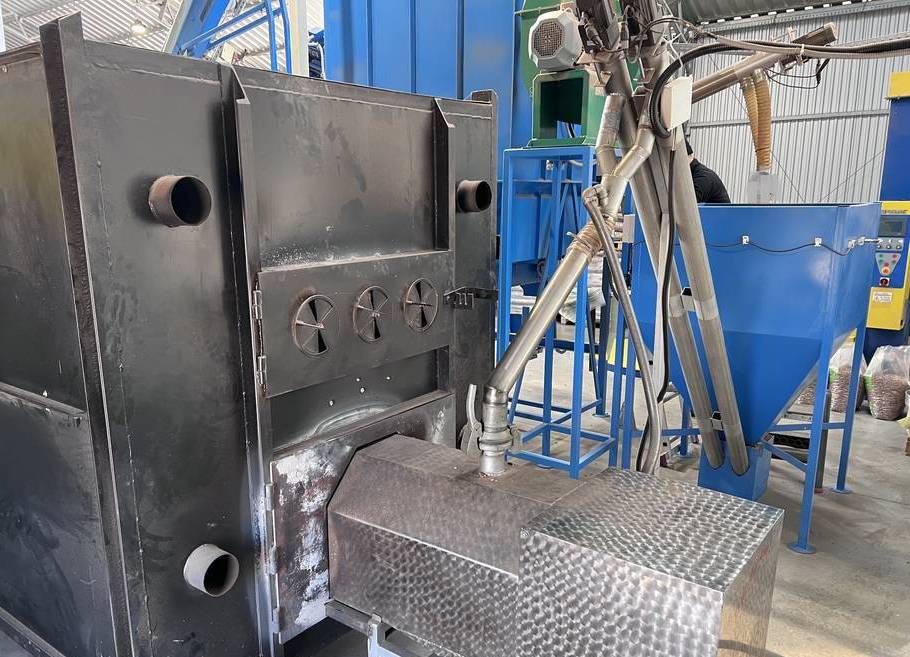

BRIKOL BT 1000 granulation line

BRIKOL BT 1000 granulation line was built in 2019 in Poland by BRIKOL Sp. z o.o. (first launch in 2020). This extremely efficient and energy-saving system is designed for the production of pellets from various types of raw materials, i.e. wood waste, sawdust and bran. It features a number of components with the best technical parameters, which enable the entire production process to be performed fully automatically. In this way, the problem of waste disposal in the carpentry and sawmill industry can be solved while at the same time making a profit. The BRIKOL pellet production line is fully complete and has the following components: – MB37 hammer mill – drum dryer – kiln – pellet mill – pellet sifter – sawdust conditioner – tank – flight conveyor (2 pcs) – screw conveyor – binder hopper – cooling device – control cabinet with display and computer Technical specifications of individual parts of the BRIKOL BT 1000 pellet line General data processed raw materials: sawdust, woodchips, dry leguminous waste, etc. capacity: 1200-1400 kg/h power: 156 kW space requirement: 170 m2 power supply of the BRIKOL BT 1000 machine: 3x 400 V; 50 Hz Hammer mill capacity: 1650 kg/h power: 37 kW number of knives: 48 Klin thermal capacity: 2 MW pellet burner 1 MW prefabricated, heat-resistant concrete ceiling heat buffer made of chamotte brick Drum dryer capacity: 2000 kg/h work chamber diameter: 1,5 m work chamber length: 15 m extraction fan
