2000 X 2-6 MM cut-to-length line

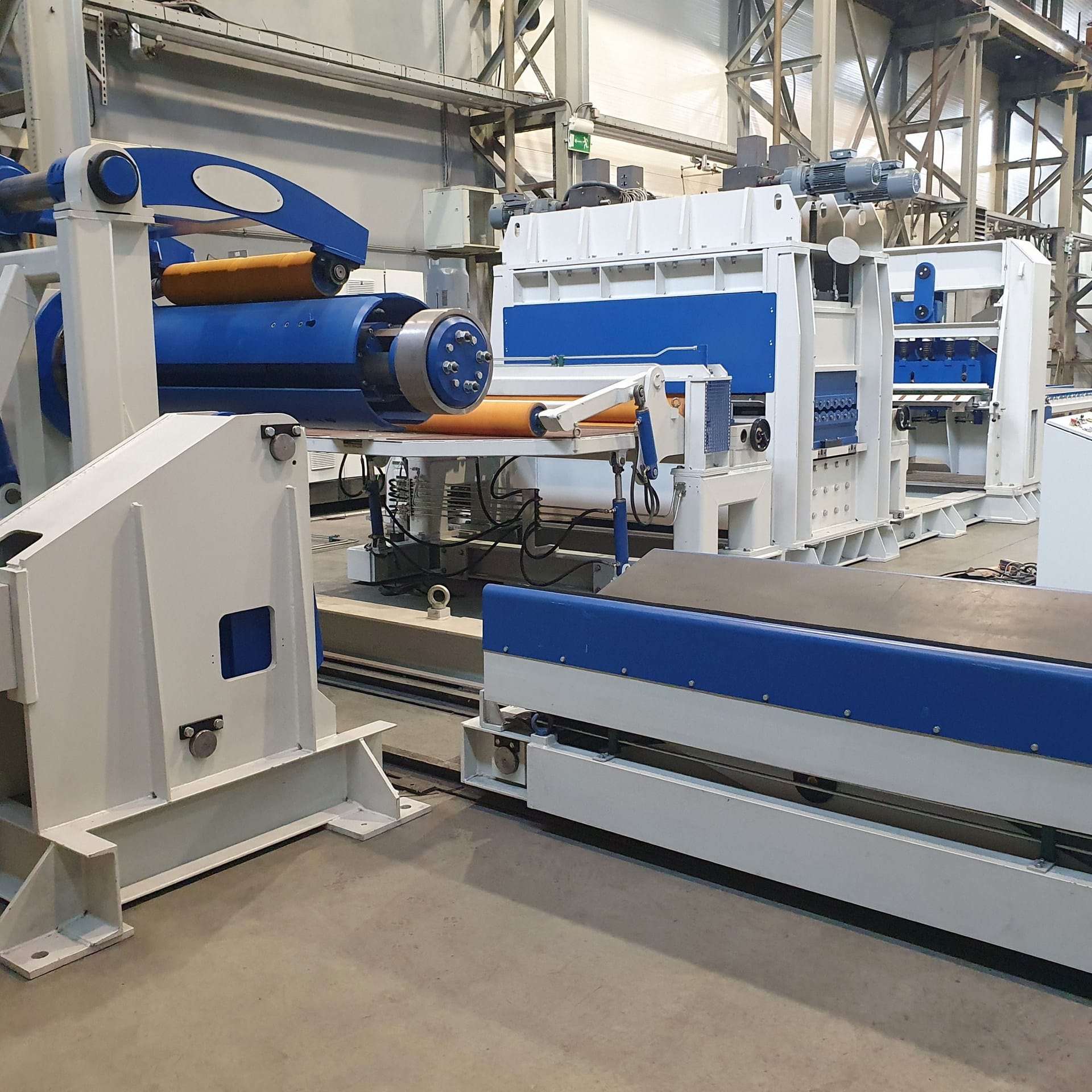

2000 X 2-6 MM cut-to-length line was built in 2018. The line was specially configured for machining stainless steel in a start-stop system with a stationary guillotine and sheet pick-up from the discharge conveyor. Maximum production efficiency is ensured by the use of a special system that packs the sheets into bundles after cutting. Other proven solutions, in turn, guarantee many years of trouble-free operation of the line. The offered cut-to-length line has undergone a general overhaul and is in perfect condition. All components meet the safety standards required by the applicable directives, as confirmed by the CE declaration. The 2000 X 2-6 MM cut-to-length line is fully complete and consists of the following components: – scissor lift table – sheet metal decoiler 7.5 t – infeed and guide system – sheet metal straightening unit – double-side foiling system – guillotine – segmented discharge conveyor – automatic sheet stacking unit – hydraulic unit – pneumatic unit – supply and control unit – safety system Technical specifications of the 2000 X 2-6 MM cut-to-length line Input material material type: stainless steel maximum material thickness: 6 mm minimum material thickness: 2 mm maximum sheet metal dimensions (L x W): 6000 x 2000 mm minimum sheet metal dimensions (L x W): 1000 x 100 mm tensile strength (Rm AISI 316): 750 MPa tensile strength (Rm AISI 304): 680 MPa yield strength (Re (Rp02) AISI 316): 280 Mpa yield strength (Re (Rp02) AISI 304): 280 Mpa Sheet metal decoiler payload: 7500 kg maximum coil width: 2000 mm minimum coil width: 1000 mm coil external diameter: 1200 mm coil inner diameter: approx. 508 mm pressure roller main drive: geared motor Loading table type: scissor-type payload: 7500 kg drive: hydraulic cylinders Infeed and guide system type: tilting infeed table with pressure roller and centring systems design of centring systems: roller tracks with manual width adjustment maximum width adjustment: 2050 mm minimum width adjustment: 950 mm belt guiding: centring devices adjustable to the line axis bottom puller shaft housing: fixed upper puller shaft housing: hydraulically adjustable pull and straightening roller drive: geared motor covering of rollers: polyurethane Straightening unit maximum strip width: 2000 mm minimum strip width: 1000 mm maximum strip thickness: 6 mm minimum strip thickness: 2 mm number of straightening rollers (top): 5 number of straightening rollers (bottom): 6 rollers deflection protection: supportive Double-side foiling system maximum strip width: 2000 mm minimum strip width: 1000 mm manual start-up automatic film cutting working roll clamping: pneumatic Guillotine maximum strip width: 2000 mm minimum strip width: 1000 mm maximum strip thickness: 6 mm minimum strip thickness: 2 mm segmented cutting knives operating mode: start-stop upper knife drive: hydraulic cylinder Segmented discharge conveyor type: roller number of segments: 2 conveyor dimensions (L x W): 6000 x 2000 mm Automatic sheet stacking unit maximum sheet metal dimensions (L x W): 6000 x 2000 mm minimum sheet metal dimensions (L x W): 1000 x 1000 mm maximum sheet stack weight: 5000 kg Pneumatic unit minimum working pressure: 8 bar required cleanliness class (according to ISO 8573-1): 3.4.3 required filtration accuracy: 5 µm permissible oil content: 1 mg/m3 dew point: 3°C Power and control unit electrical protection (main switches, overcurrent circuit breakers, motor switches, phase control relays) power supplies and isolation transformers control equipment (contactors, relays) inverters and soft starters PLC input and output modules remote access router
